TFT LCD display module LMT090DICFWD-2color800 x 4809"
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD
- Type
- color
- Format
- 800 x 480
- Screen size
- 9"
- Applications
- industrial, control
- Structure
- compact
- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Overview

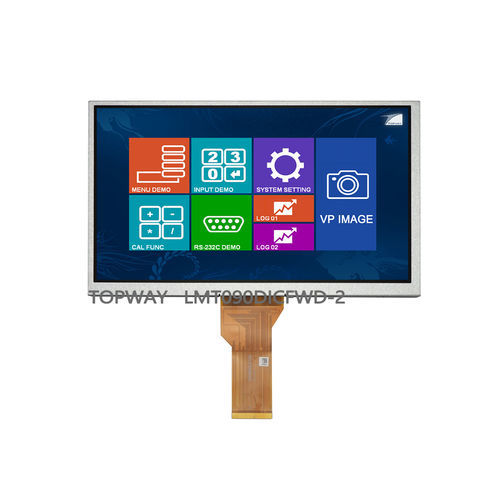

A compact 9.0\" color TFT LCD module designed for embedded and industrial display applications. Suitable for integration into control panels, HMIs and embedded systems.
Technical specifications
Mechanical & environmental
Ordering & identification
A compact 9.0\" color TFT LCD module designed for embedded and industrial display applications. Suitable for integration into control panels, HMIs and embedded systems.
Technical specifications
- Model: LMT090DICFWD-2
- Size: 9.0\"
- Resolution: 800 x 480
- Interface: RGB
- Voltage: 3.3 V
- Operating temperature: -20°C to 70°C
- Wide viewing angle: No
- Brightness: 300 cd/m²
Mechanical & environmental
- Outline (W x H x D): 211.1 x 126.5 x 5.9 mm
- Active area (A.A.): 198.0 x 111.7 mm
Ordering & identification
- Model number: LMT090DICFWD-2
- Brand: Topway display
