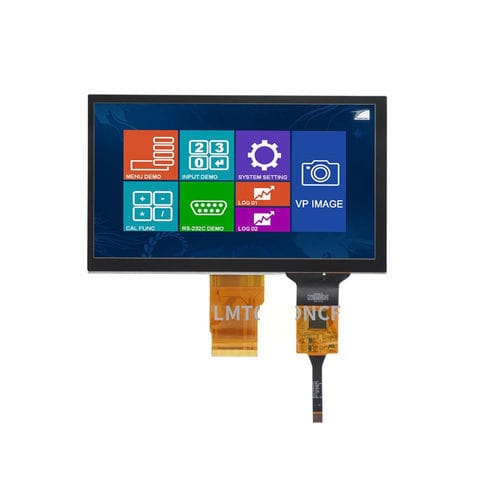

Touch screen display module LMT070DNCFWD-NND-2capacitive touch screencolor800 x 480
Add to favorites
Compare this product
Characteristics
- Screen type
- touch screen, capacitive touch screen
- Type
- color
- Format
- 800 x 480
- Screen size
- 7"
- Interface
- RGB
- Width
164.9 mm
(6.4921 in)- Height
100 mm
(3.937 in)- Thickness
8 mm
(0.315 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Product overview
Mechanical & environmental
Additional information
Technical specifications
- Model: LMT070DNCFWD-NND-2
- Size: 7.0"
- Resolution: 800 x 480
- Interface: RGB
- Touch Screen: CTP (Capacitive Touch Panel)
- Brightness: 400 cd/m²
Mechanical & environmental
- Outline (W x H x D): 164.9 x 100.0 x 8.0 mm
- Active Area (A.A.): 154.08 x 85.9 mm
- Operating Temperature: -20°C ~ 70°C
- Wide Viewing Angle: No
Additional information
- Datasheet / product PDF available (refer to product resources)
Technical specifications
- Model: LMT070DNCFWD-NND-2
- Display size: 7.0 inch
- Active area: 154.08 x 85.9 mm
- Outline dimensions: 164.9 x 100.0 x 8.0 mm
- Resolution: 800 x 480 pixels
- Interface: RGB
- Touch panel: CTP (capacitive)
- Brightness: 400 cd/m²
- Operating temperature range: -20°C to 70°C
- Wide viewing angle: No
