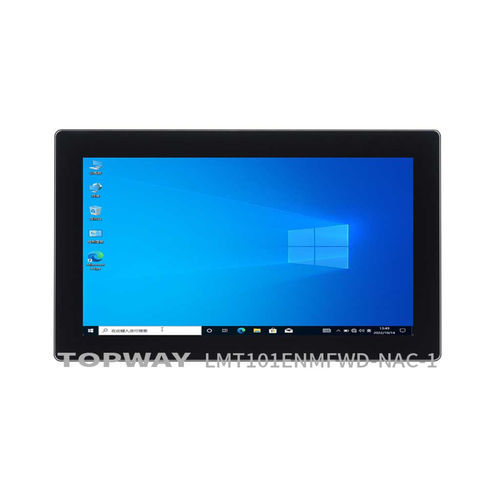

TFT LCD display module LMT101ENMFWD-NAC-1capacitive touch screencolor1024 x 600
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, capacitive touch screen
- Type
- color
- Format
- 1024 x 600
- Screen size
- 10.1"
- Applications
- industrial
- Interface
- LVDS
- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 70 °C
(158 °F)
Description
This 10.1-inch color TFT LCD module is designed for embedded and industrial display applications and offers an optional touch-capable variant (CTP). It supports LVDS interface and a wide operating temperature range suitable for industrial environments.
Technical features / specifications
Technical features / specifications
- Model: LMT101ENMFWD-NAC-1
- Size: 10.1 inches
- Resolution: 1024 x 600
- Interface: LVDS
- Voltage: 3.3V
- Operating temperature: -20°C ~ 70°C
- Outline (W x H x D): 260.0 x 163.0 x 19.1 mm
- Active area (A.A.): 222.72 x 125.28 mm
- Touch screen: CTP (capacitive touch panel)
- Brightness: 300 cd/m²
- Wide viewing angle: No
