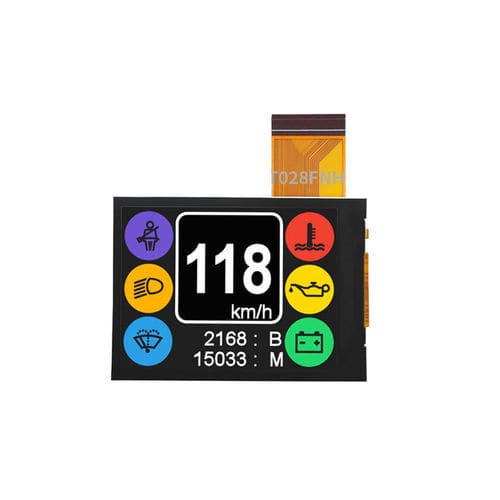

TFT LCD display module LMT028FNHFWAcolor320 x 2402.8"
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD
- Type
- color
- Format
- 320 x 240
- Screen size
- 2.8"
- Applications
- industrial
- Interface
- MCU
- Configuration/mounting
- portable
- Other characteristics
- wide-viewing angle
- Width
50 mm
(1.9685 in)- Height
69.2 mm
(2.7244 in)- Thickness
2.9 mm
(0.114 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -30 °C
(-22 °F)
Description
Overview
2.8-inch color TFT LCD module with MCU interface and native 240 × 320 (QVGA) resolution. Supply voltage 3.3V and operating temperature range -30°C to 80°C, suitable for industrial display applications.
Key specifications
Mechanical dimensions
Product details
Brightness: 1000 cd/m²
Applications
2.8-inch color TFT LCD module with MCU interface and native 240 × 320 (QVGA) resolution. Supply voltage 3.3V and operating temperature range -30°C to 80°C, suitable for industrial display applications.
Key specifications
- Model: LMT028FNHFWA
- Display type: Color TFT LCD
- Diagonal size: 2.8 inch
- Resolution: 240 × 320 (QVGA)
- Interface: MCU
- Supply voltage: 3.3V
- Operating temperature: -30°C to 80°C
- Viewing angle: Wide
- Brightness: 1000 cd/m²
Mechanical dimensions
- Outline (W×H×T): 50.0 mm × 69.2 mm × 2.9 mm
- Active area (A.A.): 43.2 mm × 57.6 mm
- Size: 2.8"
Product details
Brightness: 1000 cd/m²
Applications
- Industrial instrumentation and control panels
- Handheld and portable devices
- Embedded systems and OEM equipment
