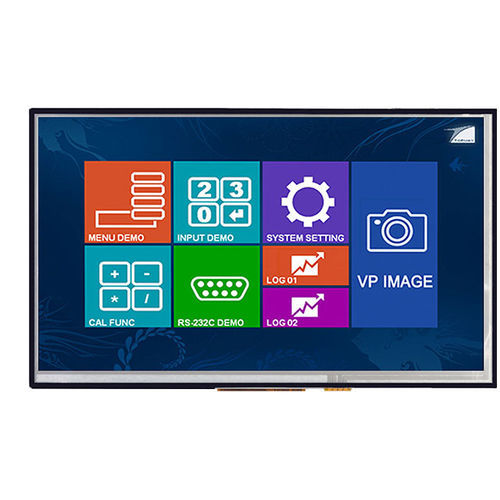

Color display module LMT070DDCFWD-NNA-2
LCD/TFTresistive touch screen800 x 480

color display module
color display module
Add to favorites
Compare this product


Characteristics

Type
color, LCD/TFT, resistive touch screen
Format
800 x 480
Screen size
7"
Applications
industrial, control
Other characteristics
electronic, RS-232, programmable, RS485

Description

This Module is designed for portable DVD, GPS car TV & PMP(portable multimedia player)application which require high quality flat panel displays. It is also a good substitute for manyoutmoded CSTN module in the industrial application.This product is composed of a TFT-LCD panel, driver ICs, FPC ,LED backlight unit and touchpanel • -Resolution: 800x480 • -Interface: RGB • -Voltage: 3.3V • -Temperature: -20°C ~ 70°C • -Outline: 164.9mm x 100.0mm x 7.2mm • -Size: 7" • -Active Area: 154.08mm x 85.92mm • -Touch Screen: RTP TFT LCD Module A TFT LCD has a liquid crystal layer between a glass substrate formed with TFTs and transparent pixel electrodes and another glass substrate with a color filter (RGB) and transparent counter electrodes. Each pixel in an active matrix is paired with a transistor that includes capacitor which gives each sub-pixel the ability to retain its charge, instead of requiring an electrical charge sent each time it needed to be changed. This means that TFT LCD displays are more responsive. Our TFT can support many different interfaces such as TTL, MCU, VGA, LVDS, RS232 etc. You can take a look at our web sites for full products detail.
