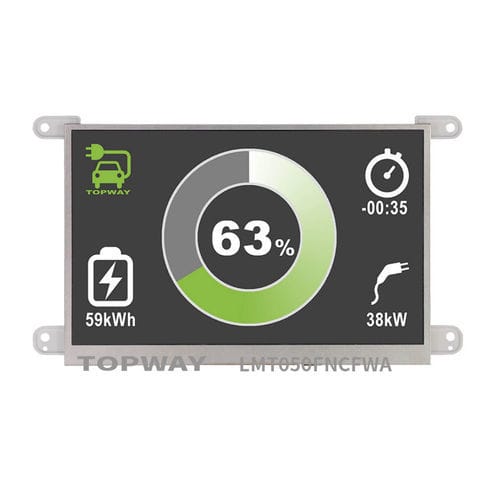

TFT LCD display module LMT050FNCFWA
colorgraphic800 x 480

TFT LCD display module - LMT050FNCFWA - TOPWAY LCD - color / graphic / 800 x 480
TFT LCD display module - LMT050FNCFWA - TOPWAY LCD - color / graphic / 800 x 480
Add to favorites
Compare this product
Go to the TOPWAY LCD website for more information

Characteristics

Screen type
TFT LCD
Type
color, graphic
Format
800 x 480
Screen size
5"
Applications
industrial
Interface
RGB
Other characteristics
wide-viewing angle
Width

136 mm
(5.3543 in)

Height

78.81 mm
(3.1028 in)

Thickness

7 mm
(0.276 in)

Operating temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Description

Product Overview
  • 5.0 inch TFT LCD module LMT050FNCFWA with RGB interface and 800×480 resolution, 350 cd/m² brightness.


Key specifications
  • Model: LMT050FNCFWA
  • Display type: 5.0 inch TFT LCD (RGB)
  • Resolution: 800 × 480 pixels
  • Brightness: 350 cd/m²
  • Active area: 108.0 mm × 64.8 mm


Electrical & environmental
  • Interface: RGB
  • Operating voltage: 3.3 V
  • Operating temperature: -20 °C to 70 °C
  • Wide viewing angle


Mechanical dimensions
  • Outline dimensions: 136.00 mm × 78.81 mm × 7.0 mm
  • Size: 5.0 inch


Applications
  • Designed for industrial HMI, instrumentation, embedded systems and devices requiring a compact 5.0 inch RGB display.
