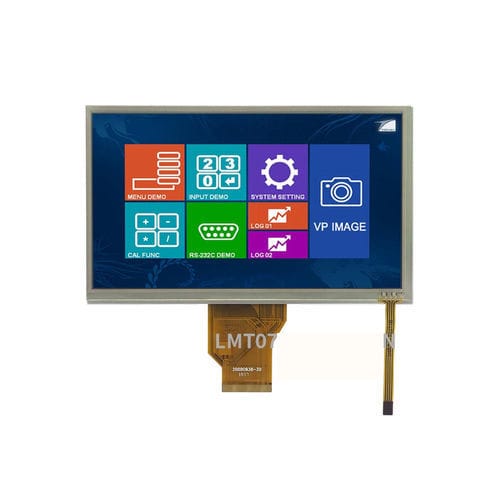

TFT LCD display module LMT070DDCFWD-NNA-2resistive touch screencolor800 x 480
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, resistive touch screen
- Type
- color
- Format
- 800 x 480
- Screen size
- 7"
- Applications
- industrial, instrumentation, HMI
- Interface
- RGB
- Width
164.9 mm
(6.4921 in)- Height
100 mm
(3.937 in)- Depth
7.2 mm
(0.28 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Product overview7.0 inch color TFT LCD module, model LMT070DDCFWD-NNA-2, featuring 800 x 480 resolution, RGB interface and RTP resistive touch. Designed for industrial displays and embedded HMI applications.Key specificationsDiagonal size: 7.0 inchResolution: 800 x 480 (RGB)Interface: RGBTypical brightness: 400 cd/m²Operating voltage: 3.3 VOperating temperature: -20°C to 70°CWide viewing angle: NoTouch: RTP (Resistive Touch Panel)Mechanical dimensionsOutline (W x H x D): 164.9 mm x 100.0 mm x 7.2 mmActive area (A.A.): 154.08 mm x 85.92 mmApplications & additional informationModel: LMT070DDCFWD-NNA-2Display type: Color TFT LCDBrightness: 400 cd/m²Recommended for: industrial control panels, instrumentation, embedded systems
Catalogs
No catalogs are available for this product.
See all of TOPWAY LCD‘s catalogsOther TOPWAY LCD products
TFT display module
