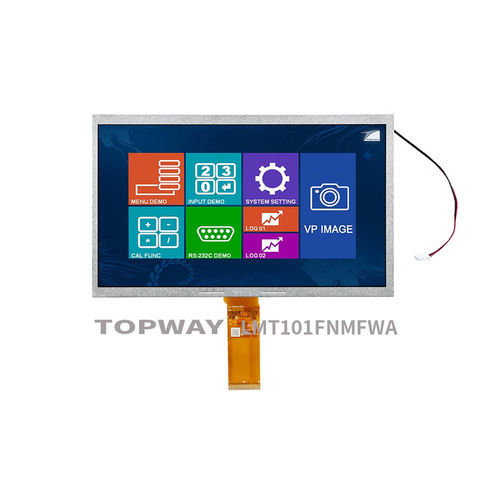

TFT LCD display LMT101FNMFWAcolor1024 x 60010.1"
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD
- Type
- color
- Format
- 1024 x 600
- Screen size
- 10.1"
- Interface
- RGB
- Other characteristics
- wide-viewing angle
- Width
235 mm
(9.252 in)- Height
143 mm
(5.6299 in)- Thickness
5 mm
(0.197 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Product overview
Key specifications
Mechanical & active area
Electrical & interface
Model
- Model: LMT101FNMFWA
- Product type: Color TFT LCD module
- Size: 10.1 inch
- Resolution: 1024 x 600
- Interface: RGB (parallel)
Key specifications
- Brightness: 400 cd/m²
- Supply voltage: 3.3 V
- Operating temperature range: -20°C to 70°C
- Wide viewing angle: Yes
Mechanical & active area
- Outline dimensions (W×H×T): 235.0 x 143.0 x 5.0 mm
- Active area (A.A.): 222.72 x 125.28 mm
Electrical & interface
- Interface type: Parallel RGB
- Supply: 3.3 V
Model
- LMT101FNMFWA
Catalogs
No catalogs are available for this product.
See all of TOPWAY LCD‘s catalogsOther TOPWAY LCD products

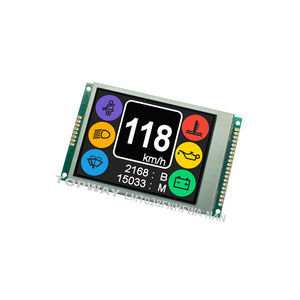

TFT display module
