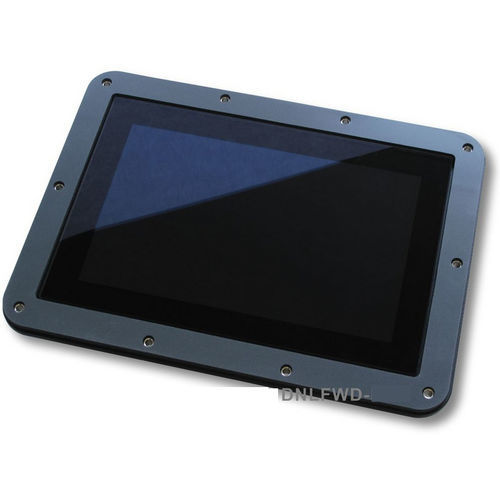

TFT-LCD monitor LMT101DNLFWD-FKDcapacitive touch screen10.1"1280 x 800
Add to favorites
Compare this product
Characteristics
- Technology
- TFT-LCD, capacitive touch screen
- Display size
- 10.1"
- Resolution
- 1280 x 800
- Mounting
- for integration
- Other characteristics
- high-brightness, wide viewing angle, IP65
- Width
308 mm
(12.126 in)- Height
228 mm
(8.9764 in)- Thickness
45.8 mm
(1.803 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Highlights
Information
Resolution: 1280×800
Interface: LVDS
Voltage: 5V / 12V
Operating Temperature: -20°C ~ 70°C
Wide Viewing Angle: Yes
Outline: 308.0 x 228.0 x 45.8 mm
Size: 10.1"
Active Area: 216.96 x 135.6 mm
Touch Screen: CTP
Technical specifications
- 850 cd/m² brightness for high-visibility displays
- IK08 tamper-proof front
- IP65 front and side waterproof protection
- Compatible with EV charger display terminal (State Grid Corp. of China standard)
- All-in-one structure for simplified assembly and integration
- Used in mass production for solar energy systems, BMS and EV charger applications
- Manufacturer commitment to timely delivery and supply stability
Information
Resolution: 1280×800
Interface: LVDS
Voltage: 5V / 12V
Operating Temperature: -20°C ~ 70°C
Wide Viewing Angle: Yes
Outline: 308.0 x 228.0 x 45.8 mm
Size: 10.1"
Active Area: 216.96 x 135.6 mm
Touch Screen: CTP
Technical specifications
- Model: LMT101DNLFWD-FKD
- Display Type: Color TFT LCD Module
- Diagonal Size: 10.1"
- Resolution: 1280 x 800 pixels
- Interface: LVDS
- Touch: Capacitive Touch Panel (CTP)
- Brightness: 850 cd/m²
- Protection: IK08 tamper proof; IP65 front and side waterproof
- Outline Dimensions: 308.0 x 228.0 x 45.8 mm
- Active Area (A.A.): 216.96 x 135.6 mm
- Voltage Supply: 5V / 12V
- Operating Temperature Range: -20°C to 70°C
