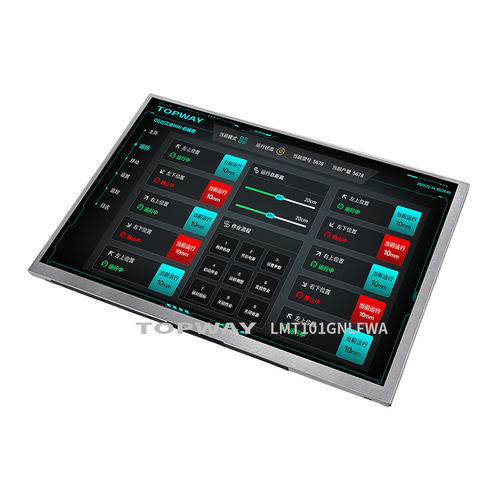

TFT LCD display LMT101GNLFWAcolor1280 x 80010.1"
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD
- Type
- color
- Format
- 1280 x 800
- Screen size
- 10.1"
- Applications
- instrumentation, industrial, HMI
- Interface
- LVDS
- Other characteristics
- high-brightness, wide-viewing angle
- Width
Max.: 229.8 mm
(9.0472 in)Min.: 229.8 mm
(9.0472 in)- Height
Max.: 149 mm
(5.8661 in)Min.: 149 mm
(5.8661 in)- Thickness
9.23 mm
(0.363 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Overview
Technical information
Product details
Specifications
- Color TFT LCD display, 10.1 inch, native resolution 1280×800, LVDS interface
- Brightness: 1000 cd/m²; wide viewing angle
Technical information
- Model: LMT101GNLFWA
- Panel diagonal: 10.1"
- Resolution: 1280 x 800 pixels
- Interface: LVDS
- Operating voltage: 3.3 V
- Operating temperature: -20°C to 70°C
- Brightness: 1000 cd/m²
- Viewing angle: wide
Product details
- Active area (A.A.): 216.96 x 135.60 mm
- Mechanical outline (W x H x T): 229.80 x 149.00 x 9.23 mm
- Display type: color TFT LCD
- Suitable for industrial HMI, instrumentation and embedded systems
Specifications
- Model: LMT101GNLFWA
- Size: 10.1"
- Native resolution: 1280 x 800
- Interface: LVDS
- Operating voltage: 3.3 V
- Operating temperature range: -20°C ~ 70°C
- Brightness: 1000 cd/m²
- Active area: 216.96 x 135.60 mm
- Outline (W x H x T): 229.80 x 149.00 x 9.23 mm
