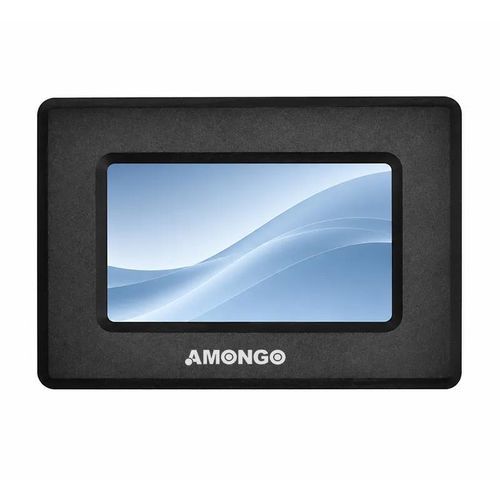

LCD monitor AMG-07IPPC01T1resistive touch screenLED backlightfor industrial machines
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, resistive touch screen, LED backlight
- Applications
- for industrial machines, for HMI interface
- Display size
- 7"
- Resolution
- 800 x 480
- Mounting
- panel-mount
- Other characteristics
- VGA-DVI port, wide viewing angle, wide temperature range, customizable, rugged
- Width
152.4 mm
(6 in)- Height
91.44 mm
(3.6 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Product overview
This 7-inch industrial-grade panel-mount LCD monitor AMG-07IPPC01T1 is designed for industrial and commercial equipment requiring a compact display with resistive touch input and reliable operation in wide temperature ranges.
Key features
Typical applications
Technical specifications
This 7-inch industrial-grade panel-mount LCD monitor AMG-07IPPC01T1 is designed for industrial and commercial equipment requiring a compact display with resistive touch input and reliable operation in wide temperature ranges.
Key features
- Shock and vibration resistant design
- Customizable mechanical and electronic options
- High image quality with wide viewing angles
- Industrial-grade components for extended operation
Typical applications
- Industrial control panels and HMI
- AFC systems
- Logistics and equipment cabinets
Technical specifications
- Screen Size: 7"
- Active Display Area (mm): 152.4 (H) x 91.44 (V)
- Pixel Pitch (mm): 0.1905 (H) x 0.1905 (V)
- Display Mode: Normally white
- Display Resolution (pixel): 800x480
- Contrast Ratio: 500:1
- Display Color: 16.2M
- Brightness: 350 nits
- Backlight: LED
- Viewing Angles (CR=10): 110° (H); 130° (V)
- Response Time (Typ. Tr+Tf): 30 ms
- Touch Screen: Resistive
- Signal Connector: VGA/DVI
- Power Input: DC 12V
- Operating Temperature: -20～70℃
- Storage Temperature: -20～70℃
- Relative Humidity: 5(%RH)～90(%RH)
