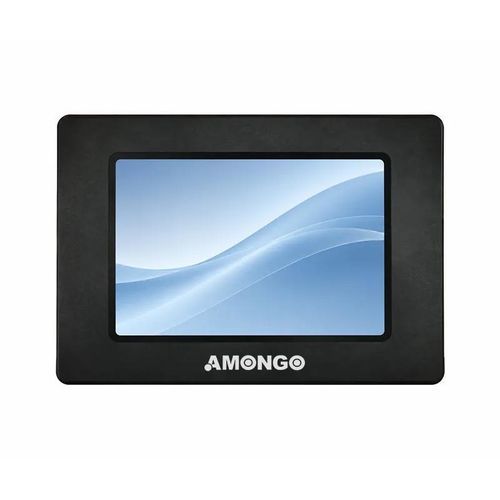

LCD monitor AMG-10IPPC02T2-3resistive touch screenLED backlightfor industrial machines
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, resistive touch screen, LED backlight
- Applications
- for industrial machines, for HMI interface
- Display size
- 10.4"
- Resolution
- 800 x 600
- Mounting
- panel-mount, for integration
- Other characteristics
- VGA, DVI port, wide viewing angle, customizable, rugged
- Width
211.2 mm
(8.315 in)- Height
158.4 mm
(6.2362 in)- Operating temperature
Min.: -30 °C
(-22 °F)Max.: 80 °C
(176 °F)
Description
Description
This 10.4" rugged industrial touch LCD monitor is engineered for operation in harsh environments. It integrates a 10.4" 800×600 display with LED backlight and resistive touch option, suitable for industrial control panels and cabinets.
Key features
Typical applications
Specifications
This 10.4" rugged industrial touch LCD monitor is engineered for operation in harsh environments. It integrates a 10.4" 800×600 display with LED backlight and resistive touch option, suitable for industrial control panels and cabinets.
Key features
- Multiple touch options (resistive available)
- Mechanical design optimized for industrial mounting
- Shock and vibration resistance for harsh conditions
- Industrial-grade electronic components
- Customizable interfaces and mounting
Typical applications
- Industrial equipment and HMI
- AFC systems
- Logistics and control cabinets
Specifications
- Screen Size: 10.4"
- Active Display Area (mm): 211.2 (H) x 158.4 (V)
- Pixel Pitch (mm): 0.264 (H) x 0.264 (V)
- Display Mode: Normally white
- Resolution: 800 x 600 pixels
- Contrast Ratio: 700:1
- Display Color: 16.2M
- Brightness: 400 nits
- Backlight: LED
- Viewing Angles (CR=10): 160° (H); 140° (V)
- Response Time (Typ. Tr+Tf): 30 ms
- Touch Screen: Resistive
- Signal Connector: VGA / DVI
- Power Input: DC 12V
- Operating Temperature: -30～80°C
- Storage Temperature: -30～80°C
- Relative Humidity: 5% RH ～ 90% RH
