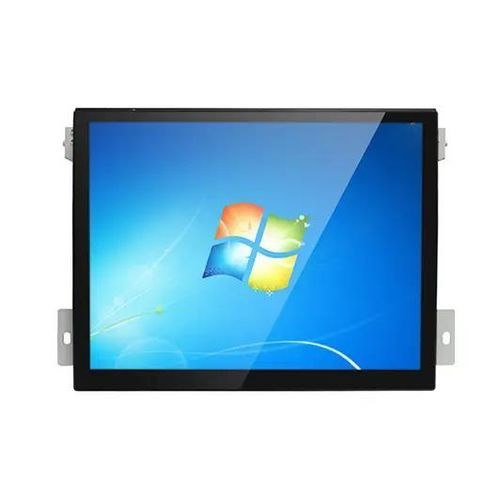

LCD monitor AMG-15OPGD02T5multi-touch screenresistive touch screenLED backlight
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, resistive touch screen, PCAP touchscreen, multi-touch screen, LED backlight
- Applications
- for industrial machines, outdoor, for digital signage, for HMI interface, for vehicles
- Display size
- 15"
- Resolution
- 1024 x 768
- Mounting
- rack-mount
- Other characteristics
- VGA, USB, DVI port, high-brightness, aluminum, wide temperature range, IP65, NEMA 4
- Width
304.128 mm
(11.9735 in)- Height
228.096 mm
(8.9802 in)- Operating temperature
Min.: -30 °C
(-22 °F)Max.: 85 °C
(185 °F)
Description
Product overview
This 15" high-brightness industrial rack-mount LCD monitor AMG-15OPGD02T5 offers a 1200-nit LED-backlit display with optional PCAP touch for multi-point input, a front panel rated IP65 / NEMA 4 and a robust aluminum enclosure suited to industrial environments.
Key features
Typical applications
Specification
This 15" high-brightness industrial rack-mount LCD monitor AMG-15OPGD02T5 offers a 1200-nit LED-backlit display with optional PCAP touch for multi-point input, a front panel rated IP65 / NEMA 4 and a robust aluminum enclosure suited to industrial environments.
Key features
- 15" high-brightness LCD, 1200 nits
- Projected capacitive touch (PCAP) 10-point; resistive touch optional
- Front panel protection: IP65 / NEMA 4
- Robust aluminum enclosure for rack mounting
- Signal interfaces: VGA / DVI / USB
- Power: DC 12V
- Wide operating temperature range: -30 to 85℃
Typical applications
- Industrial equipment and machine control panels
- Railway and transportation displays
- Fitness equipment (treadmills)
- Outdoor kiosks and control stations
- OEM panel integration
Specification
- Screen Size: 15"
- Active Display Area (mm): 304.128 (H) x 228.096 (V)
- Pixel Pitch (mm): 0.297 (H) x 0.297 (V)
- Display Mode: Normally white
- Display Resolution (pixel): 1024 x 768
- Contrast Ratio: 700:1
- Display Color: 16.2M
- Brightness: 1200 nits
- Backlight: LED
- Viewing Angles (CR=10): 160° (H); 140° (V)
- Response Time (Typ. Tr+Tf): 8 ms
- Touch Screen: PCAP Touch (10 points)
- Signal Connector: VGA / DVI / USB
- Power Input: DC 12V
- Operating Temperature: -30～85℃
- Storage Temperature: -30～85℃
- Relative Humidity: 5(%RH)～90(%RH)
