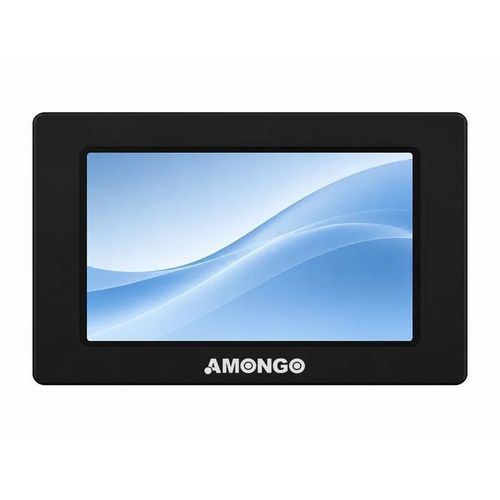

LCD/TFT monitor AMG-11IPPC01T1

multitouch screenLED backlightwith PCT touch screen

Product overview
The 11.6-inch panel-mount PCAP touch LCD monitor AMG-11IPPC01T1 is designed for industrial human-machine interface applications requiring a compact display with multi-touch capability and an aluminum frame for improved thermal performance.

Key features

• PCAP multi-touch screen (10 points)
• Aluminum frame housing for heat dissipation
• Wide viewing angles (178°/178°)
• LED backlight with 300 nits brightness
• Standard video inputs: VGA and DVI-D

Typical applications

• Industrial control panels and operator consoles
• Railway on-board and station equipment
• Embedded systems and kiosks

Technical specifications

• Screen size: 11.6-inch
• Active display area (mm): 270.37 (H) x 159.79 (V)
• Pixel pitch (mm): 0.13455 (H) x 0.13455 (V)
• Display mode: Normally black
• Display resolution (pixels): 1920 × 1080
• Display color: 16.7M
• Contrast ratio: 1000:1
• Brightness: 300 nits
• Backlight: LED
• Viewing angles (CR=10): 178° (H); 178° (V)
• Response time (Typ. Tr+Tf): 25 ms
• Touch screen: PCAP touch (10 points)
• Signal connector: VGA / DVI-D
• Power input: DC 12V
• Touch controller: USB
• Operating temperature: 0–50 °C (non‑condensing)
• Storage temperature: -10–60 °C (non‑condensing)
• Relative humidity: 5%–90% RH
