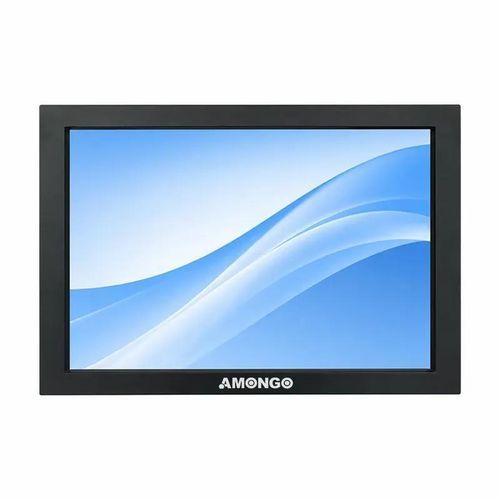

LCD monitor AMG-17IPZL01T1

LED backlightdigitalinfrared touchscreen

Product overview
This 17-inch industrial VESA wall-mount LCD monitor (AMG-17IPZL01T1) features an all-metal housing and IR touch interface, designed for continuous operation in demanding environments.

Key features

• IR touch screen
• Light sensor for energy saving
• Iron panel design with sturdy metal housing
• High-reliability testing for stable performance
• VESA 75 / sidebar design for easy installation

Typical applications

• Industrial equipment
• AFC
• Logistics cabinet

Specification
Screen Size: 17"
Active Display Area (mm): 337.920(H)x270.336(V)
Pixel Pitch (mm): 0.264(H)x0.264(V)
Display Mode: Normally white
Display Resolution (pixel): 1280x1024
Contrast Ratio: 1000:1
Display Color: 16.7M
Brightness: 350 nits
Backlight: LED
Viewing Angles (CR=10): 170(H);160(V)
Response Time (Typ.Tr+Tf): 5ms
Touch Screen: IR
Signal Connector: VGA/DVI-D
Power Input: DC 12V
Touch Controller: USB
Operating Temperature: -30～85℃ (not clotted)
Storage Temperature: -30～85℃ (not clotted)
Relative Humidity: 5(%RH)～90(%RH)

Technical specifications

• Screen Size: 17"
• Active Display Area (mm): 337.920(H)x270.336(V)
• Pixel Pitch: 0.264(H)x0.264(V) mm
• Resolution: 1280x1024
• Brightness: 350 nits
• Backlight: LED
• Contrast Ratio: 1000:1
• Viewing Angles: 170° (H) / 160° (V)
• Response Time: 5 ms
• Touch: IR with USB controller
• Signal: VGA / DVI-D
• Power Input: DC 12V
• Operating Temp: -30 to 85°C
• Storage Temp: -30 to 85°C
• Relative Humidity: 5%RH to 90%RH
