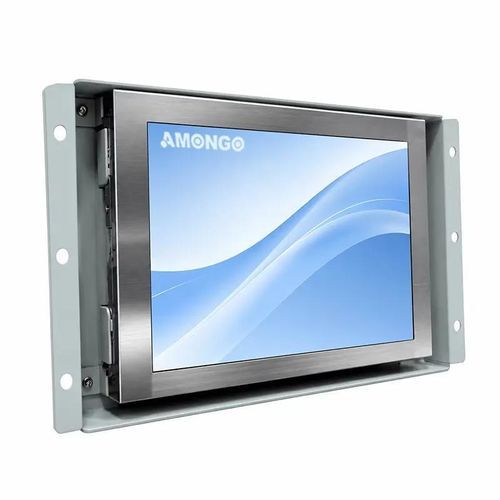

LCD monitor AMG-06OPSK01N1

multitouch screenresistive touch screenLED backlight

Product Overview
The AMG-06OPSK01N1 is a 5.7-inch wide-temperature industrial LCD display designed for rack-mount installation. It provides 640×480 resolution, an LED backlight, VGA input and optional touchscreen interfaces for integration in harsh environments.

Key features

• Optional touchscreen: PCAP, resistive and other types
• Aluminum front panel with metal construction and IP65/NEMA 4 protection
• Designed for easy installation in standard rack enclosures
• Customization services available on request

Typical applications

• Industrial equipment and automation
• Railway and transportation systems

Advantages of 5.7 Inch Rack Mount LCD Monitors

• Branded LCD panels delivering consistent image quality and wide viewing angles for continuous operation
• Optional touchscreen integration (PCAP, resistive) for operator input
• Robust mechanical design with aluminum front panel meeting IP65/NEMA 4 requirements
• Rack-ready form factor for straightforward installation and serviceability
• Available customization to match system interfaces and mounting requirements

Specification

• Screen size: 5.7"
• Active display area: 115.2 (H) × 86.4 (V) mm
• Pixel pitch: 0.18 (H) × 0.18 (V) mm
• Display mode: Normally white
• Resolution: 640 × 480 pixels
• Contrast ratio: 800:1
• Colors: 16.2M
• Brightness: 700 nits
• Backlight: LED
• Viewing angles (CR=10): 160° (H) / 140° (V)
• Response time (Tr+Tf typ.): 25 ms
• Touchscreen: Optional (PCAP, Resistive, etc.)
• Signal connector: VGA
• Power input: DC 12V
• Operating temperature: -30°C to 80°C
• Storage temperature: -30°C to 80°C
• Relative humidity: 5% RH to 90% RH
