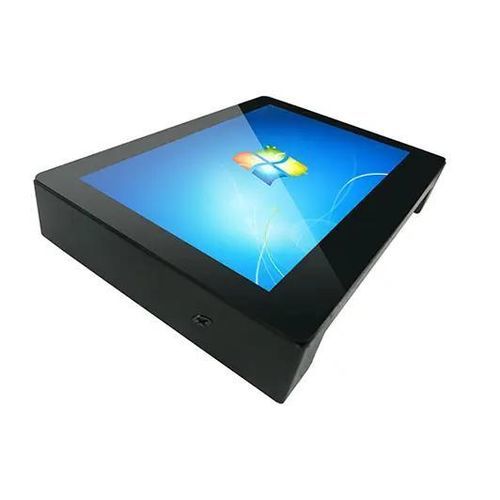

LCD monitor AMG-07OPDX01T1

resistive touch screenLED backlightinfrared touchscreen

Product Description
The industrial-grade VESA wall-mount LCD monitor AMG-07OPDX01T1 by Amongo features a full-metal enclosure and VESA rear mounting for secure installation. Designed for continuous operation, it supports PCAP touchscreen options and a wide range of input signals for integration into control panels and OEM equipment.

Benefits

• Branded LCD panel with wide viewing angles and high brightness for clear visuals in industrial environments
• Multiple touchscreen technologies available (PCAP, resistive, IR) to suit application requirements
• Robust mechanical design and full-metal housing for reliability in harsh conditions
• Protection against dust and moisture with high IP resistance; anti-shock and anti-vibration features
• Customization services available for interface, connectors and enclosure modifications

Specifications

• Model Name: AMG-07OPDX01T1
• Screen Size: 7"
• Active Display Area (mm): 153.6 (H) x 90 (V)
• Pixel Pitch (mm): 0.15 (H) x 0.15 (V)
• Display Mode: Normally White
• Display Resolution (pixel): 1024 x 600
• Contrast Ratio: 700:1
• Touch Type: PCAP TouchScreen (other options available)
• Brightness: 600 cd/㎡
• Backlight: LED
• Viewing Angles (CR =10): 160° (H) x 130° (V)
• Response Time (Typ. Tr+Tf): 25 ms
• Signal Connector: VGA / DVI / USB
• Power Consumption: DC 12V
• Dimension (V x H x T): 180 x 122 x 28.9 mm
• Operating Temperature: -20～60℃
• Storage Temperature: -30～70℃
• Relative Humidity: 5[%RH]～90[%RH]
