LCD monitor AMG-15IPPC01T4resistive touch screenLED backlightdigital
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, resistive touch screen, 5-wire resistive touch screen, digital, LED backlight
- Applications
- industrial, for industrial machines, for digital signage, for displays, for HMI interface, POS, for IoT applications, versatile, for CNC machines, construction, multifunction
- Display size
- 15.6"
- Resolution
- 1920 x 1080
- Mounting
- panel-mount
- Other characteristics
- VGA, DVI port, aluminum, embedded, high-resolution
- Width
344.16 mm
(13.5496 in)- Height
193.59 mm
(7.6217 in)- Operating temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)
Description
Product overview

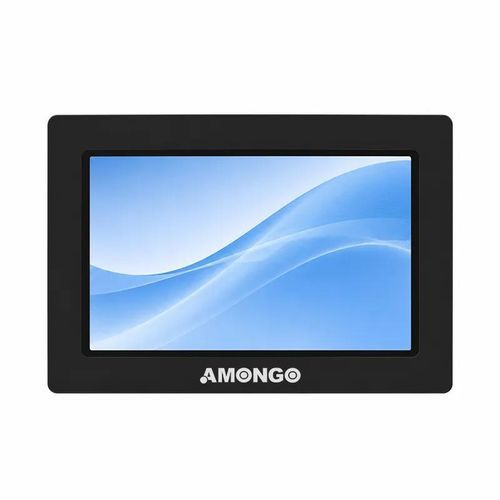

The AMG-15IPPC01T4 is a 15.6-inch panel-mount LCD monitor with a resistive touch interface, designed for industrial control panels and embedded equipment integration.
Key features
Typical applications
Technical specifications
The AMG-15IPPC01T4 is a 15.6-inch panel-mount LCD monitor with a resistive touch interface, designed for industrial control panels and embedded equipment integration.
Key features
- Aluminum frame design for panel mounting
- Full HD 1920 x 1080 resolution
- Resistive touch screen suitable for stylus/gloved use
- LED backlight with 270 nits brightness
- Wide viewing angles (140° H / 120° V)
- Standard signal inputs: VGA and DVI; power input DC 12V
Typical applications
- Industrial equipment and automation panels
- Railway and transportation control consoles
- Human-machine interfaces (HMI) and embedded systems
Technical specifications
- Screen size: 15.6-inch
- Active display area: 344.16 (H) x 193.59 (V) mm
- Pixel pitch: 0.17925 (H) x 0.17925 (V) mm
- Display mode: Normally white
- Resolution: 1920 x 1080 pixels
- Contrast ratio: 400:1
- Display colors: 16.2M
- Brightness: 270 nits
- Backlight: LED
- Viewing angles: 140° (H) / 120° (V) (CR=10)
- Response time: 8 ms (Typ. Tr+Tf)
- Touch screen: Resistive
- Signal connector: VGA / DVI
- Power input: DC 12V
- Operating temperature: 0 to 50 °C
- Storage temperature: -20 to 60 °C
- Relative humidity: 5% to 90% RH
