- Robotics - Automation - Industrial IT
- Industrial Computing
- LED backlight monitor
- AMONGO Display Technology(ShenZhen)Co.,LTD

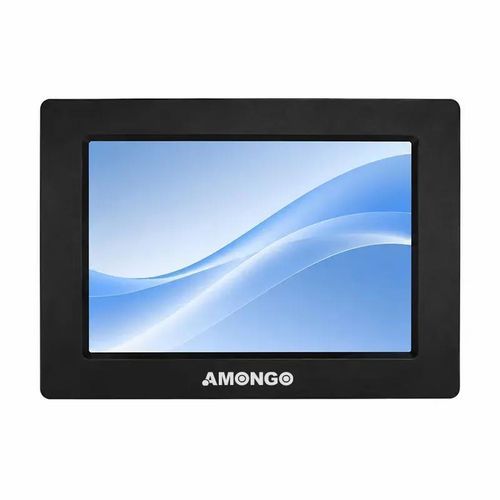

LCD monitor AMG-19IPPC02G1with touchscreenLEDLED backlight
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, with touchscreen, LED, LED backlight
- Applications
- industrial, for HMI interface, for vehicles
- Display size
- 19"
- Resolution
- 1280 x 1024
- Mounting
- panel-mount
- Format
- pixel pitch
- Other characteristics
- VGA-DVI port, wide viewing angle, rugged
- Width
376.32 mm
(14.8157 in)- Height
301.06 mm
(11.8528 in)- Thickness
3 mm
(0.118 in)- Operating temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)
Description
Product overview
This 19-inch industrial panel-mount LCD monitor features a 3 mm tempered glass front, LED backlight and industrial-grade components designed for continuous operation in demanding environments.
Key features
Typical applications
Specification
This 19-inch industrial panel-mount LCD monitor features a 3 mm tempered glass front, LED backlight and industrial-grade components designed for continuous operation in demanding environments.
Key features
- 19" panel with 1280×1024 resolution
- 3 mm tempered glass front
- LED backlight with 350 nits brightness
- Wide viewing angles: 170°(H) / 160°(V)
- Optional touch-screen capability
- Shock and vibration resistant design
- Signal inputs: VGA, DVI; Power: DC 12V
Typical applications
- Industrial equipment and HMI panels
- Railway and transportation systems
Specification
- Screen size: 19"
- Active display area (mm): 376.32 (H) x 301.06 (V)
- Pixel pitch (mm): 0.294 (H) x 0.294 (V)
- Display mode: Normally White
- Display resolution: 1280×1024
- Contrast ratio: 1000:1
- Display color: 16.7M
- Brightness: 350 nits
- Backlight: LED
- Viewing angles (CR=10): 170° (H); 160° (V)
- Response time (Typ. Tr+Tf): 5 ms
- Touch screen: Optional
- Tempered glass: 3 mm
- Signal connector: VGA / DVI
- Power input: DC 12V
- Operating temperature: 0～50℃
- Storage temperature: -20～60℃
- Relative humidity: 5 (%RH)～90 (%RH)
