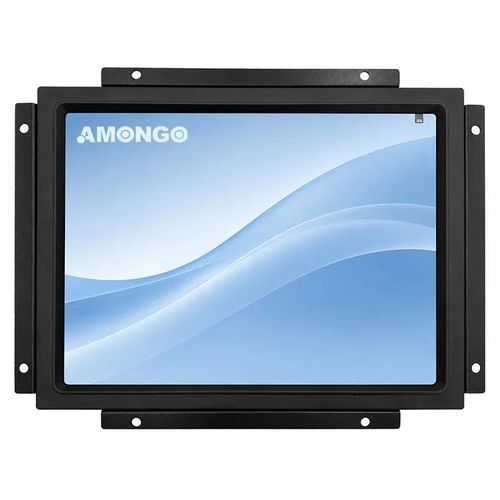

LCD monitor AMG-10IPZL01T1multitouch screenLED backlightwith PCT touch screen
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, multitouch screen, PCAP touchscreen, capacitive touch screen, with PCT touch screen, digital, LED backlight
- Applications
- for industrial machines, industrial, for heavy-duty applications, outdoor, for cleaning, for digital signage, for displays, for the automotive industry, for HMI interface, for hygienic applications, POS, high-temperature, for IoT applications, versatile, for CNC machines, construction
- Display size
- 10.4"
- Resolution
- 1024 x 768
- Mounting
- embedded, rack-mount
- Other characteristics
- VGA, DVI port, wide temperature range
- Width
211.2 mm
(8.315 in)- Height
158.4 mm
(6.2362 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Product overview

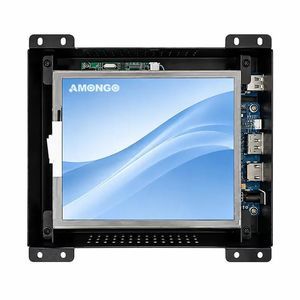

This 10.4" rear-mount industrial LCD monitor AMG-10IPZL01T1 integrates a 10-point PCAP touch panel and a 1024x768 display, designed for rack or embedded installations in demanding environments.
Key features
Typical applications
Specification
Screen size: 10.4"
Active area: 211.2(H) x 158.4(V) mm
Resolution: 1024 x 768 pixels
Touch: PCAP 10-point (USB controller)
Interfaces: VGA, DVI
Power input: DC 12V
Operating temperature: -20～70℃ (non-condensing)
Storage temperature: -30～80℃ (non-condensing)
Technical specifications
This 10.4" rear-mount industrial LCD monitor AMG-10IPZL01T1 integrates a 10-point PCAP touch panel and a 1024x768 display, designed for rack or embedded installations in demanding environments.
Key features
- PCAP multi-touch (10 points) for intuitive input
- Wide operating temperature range (-20 to 70℃)
- Rear/side strip installation suitable for embedded or rack mounting
- LED backlight with 350 nits brightness and 900:1 contrast ratio
- Reliable components and validated performance for continuous operation
Typical applications
- AFC systems and ticketing
- Industrial automation HMI
- Self-service kiosks and access control gates
Specification
Screen size: 10.4"
Active area: 211.2(H) x 158.4(V) mm
Resolution: 1024 x 768 pixels
Touch: PCAP 10-point (USB controller)
Interfaces: VGA, DVI
Power input: DC 12V
Operating temperature: -20～70℃ (non-condensing)
Storage temperature: -30～80℃ (non-condensing)
Technical specifications
- Pixel pitch: 0.20625(H) x 0.20625(V) mm
- Display mode: Normally black
- Contrast ratio: 900:1
- Display color: 16.7M
- Brightness: 350 nits
- Backlight: LED
- Viewing angles (CR=10): 150° (H), 150° (V)
- Response time (Typ. Tr+Tf): 16 ms
- Relative humidity: 5%～90% RH
