TFT-LCD monitor AMG-06IPPR01T1resistive touch screenLED backlight5-wire resistive touch screen
Add to favorites
Compare this product
Characteristics
- Technology
- TFT-LCD, resistive touch screen, 5-wire resistive touch screen, LED backlight
- Applications
- for HMI interface
- Display size
- 6.5"
- Resolution
- 640 x 480
- Mounting
- open frame, embedded, rack-mount
- Format
- pixel pitch
- Other characteristics
- HDMI, USB, high-brightness, DisplayPort, sunlight-readable, wide temperature range, 5-wire
- Width
132.48 mm
(5.2157 in)- Height
99.36 mm
(3.9118 in)- Operating temperature
Min.: -30 °C
(-22 °F)Max.: 80 °C
(176 °F)
Description
Product overview

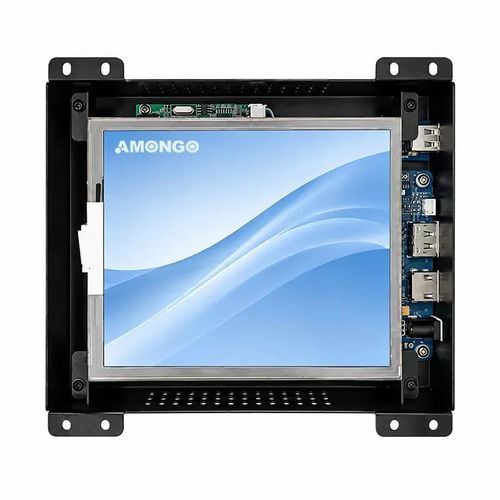

The open-frame rack-mount industrial touch LCD monitor AMG-06IPPR01T1 is designed for demanding environments, providing sunlight-readable brightness and flexible embedded or sidebar installation options.
Key features
Typical applications
Technical specifications
The open-frame rack-mount industrial touch LCD monitor AMG-06IPPR01T1 is designed for demanding environments, providing sunlight-readable brightness and flexible embedded or sidebar installation options.
Key features
- 6.5" TFT display, 640 x 480 resolution
- 5-wire resistive touch with USB controller
- High brightness: 800 nits (sunlight readable)
- HDMI and DisplayPort (DP) video inputs
- Open-frame design for embedded or rack sidebar installation
- Wide operating temperature range and validated reliability
Typical applications
- AFC systems
- Non-cash payment and self-service equipment
- Kiosks, control panels and industrial HMIs
Technical specifications
- Model: AMG-06IPPR01T1
- Screen size: 6.5"
- Active display area: 132.48 x 99.36 mm
- Resolution: 640 x 480 pixels
- Pixel pitch: 0.207 x 0.207 mm
- Display mode: Normally White
- Brightness: 800 nits
- Backlight: LED
- Contrast ratio: 600:1
- Viewing angles: 160° horizontal / 140° vertical
- Response time: 25 ms (typical)
- Touch: 5-wire resistive (USB controller)
- Signal inputs: HDMI, DP
- Power input: DC 12V
- Operating temperature: -30 to 80°C (non-condensing)
- Storage temperature: -30 to 80°C (non-condensing)
- Relative humidity: 5% to 90% RH
