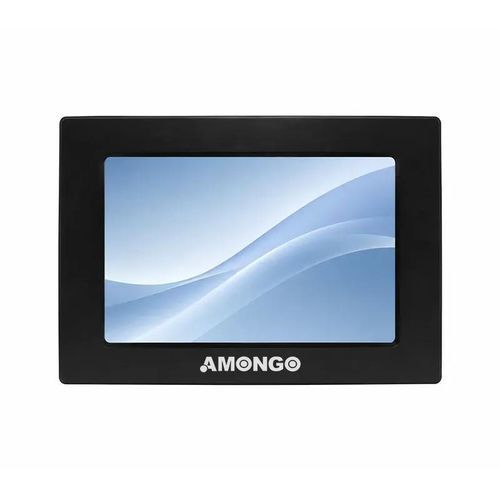

LCD monitor AMG-15IPPC07T1resistive touch screenLED backlightdigital
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, resistive touch screen, 5-wire resistive touch screen, digital, LED backlight
- Applications
- for displays, industrial, for industrial machines, outdoor, multifunction, for cleaning, for digital signage, for hygienic applications, for HMI interface, for indoor use, construction, for vehicles, POS, for IoT applications, for heavy-duty applications, versatile, for the automotive industry, for CNC machines
- Display size
- 15"
- Resolution
- 1024 x 768
- Mounting
- panel-mount
- Other characteristics
- VGA, DVI port, aluminum, wide viewing angle
- Width
304.128 mm
(11.9735 in)- Height
228.096 mm
(8.9802 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -10 °C
(14 °F)
Description
Product overview
This 15" panel-mount industrial LCD monitor features a resistive touch screen and an aluminum frame, engineered for integration into industrial equipment and rail systems. It offers multiple brightness and backlight options to accommodate various installation environments.
Key features
Typical applications
Specifications
This 15" panel-mount industrial LCD monitor features a resistive touch screen and an aluminum frame, engineered for integration into industrial equipment and rail systems. It offers multiple brightness and backlight options to accommodate various installation environments.
Key features
- Aluminum frame design for panel mounting
- 15" resistive touch screen
- Wide viewing angles (160° H / 130° V)
- Multiple brightness options: 250 / 350 / 400 / 1000 nits
- CCFL or LED backlight
- VGA and DVI signal interfaces
Typical applications
- Industrial control panels and HMIs
- Railway onboard systems
- Machine interfaces and monitoring stations
Specifications
- Screen size: 15"
- Active display area: 304.128 (H) x 228.096 (V) mm
- Pixel pitch: 0.297 x 0.297 mm
- Display mode: Normally white
- Resolution: 1024 x 768 pixels
- Contrast ratio: 700:1
- Display color: 16.2M
- Brightness (options): 250 / 350 / 400 / 1000 nits
- Backlight: CCFL or LED
- Viewing angles (CR=10): 160° (H) / 130° (V)
- Response time: 8 ms (Typ. Tr+Tf)
- Touchscreen: Resistive
- Signal connector: VGA, DVI
- Power input: DC 12V
- Operating temperature: -10 to 70 °C
- Storage temperature: -20 to 80 °C
- Relative humidity: 5%RH to 90%RH
