LCD monitor AMG-15IPAL01T1resistive touch screenLED backlight5-wire resistive touch screen
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, resistive touch screen, 5-wire resistive touch screen, LED backlight
- Applications
- industrial, for HMI interface, for vehicles
- Display size
- 15.6"
- Resolution
- 1920 x 1080
- Mounting
- VESA mounting, wall-mount
- Other characteristics
- VGA, USB, DVI port, 5-wire, IP65, dust-proof, water-resistant
- Width
344.16 mm
(13.5496 in)- Height
193.59 mm
(7.6217 in)- Operating temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)
Description
Product overview

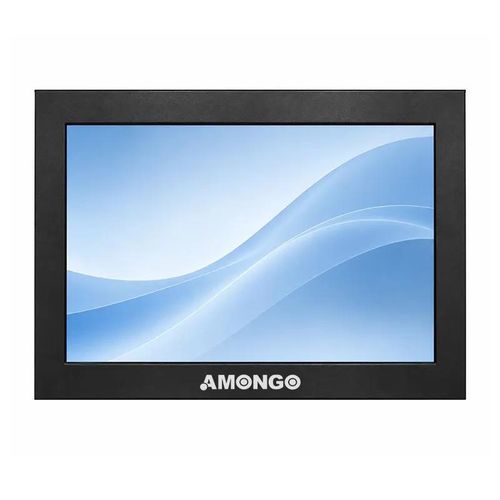

The AMG-15IPAL01T1 is a 15.6" industrial resistive 5-wire touch LCD monitor with VESA/wall-mount capability and IP65 front protection, designed for control panels and equipment interfaces.
Key features
Typical applications
Technical specifications
The AMG-15IPAL01T1 is a 15.6" industrial resistive 5-wire touch LCD monitor with VESA/wall-mount capability and IP65 front protection, designed for control panels and equipment interfaces.
Key features
- Resistive 5-wire touch screen for reliable stylus and finger input
- Iron housing and front cover
- Industrial reliability testing for stable long-term operation
- IP65 front: dust-proof and water-resistant, scratch resistant
Typical applications
- Treadmills and fitness equipment
- Industrial equipment and HMI panels
- Railway and transportation systems
Technical specifications
- Screen size: 15.6"
- Active display area (mm): 344.16 (H) x 193.59 (V)
- Pixel pitch (mm): 0.17925 (H) x 0.17925 (V)
- Display mode: Normally black
- Resolution: 1920 x 1080
- Contrast ratio: 800:1
- Display color: 16.7M
- Brightness: 300 nits
- Backlight: LED
- Viewing angles (CR=10): 170° (H); 170° (V)
- Response time (Tr+Tf): 30 ms
- Touch screen: Resistive touch (5-wire)
- Signal inputs: VGA, DVI-D
- Power input: DC 12V (DC2.0/DC2.5)
- Touch controller: USB
- Operating temperature: 0～50°C (non-condensing)
- Storage temperature: -20～60°C (non-condensing)
- Relative humidity: 5% RH ～ 90% RH
