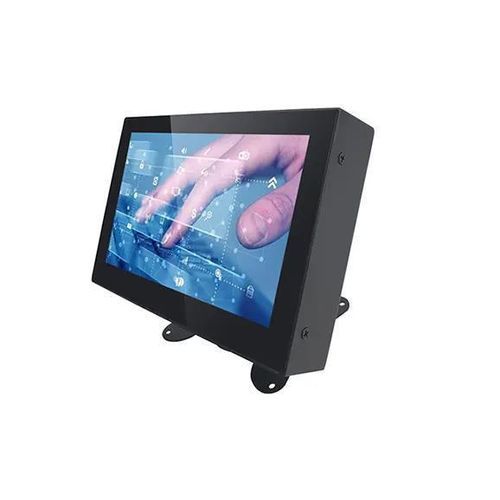

TFT-LCD monitor AMG-07OPIT01T1multitouch screenLED backlightPCAP touchscreen
Add to favorites
Compare this product
Characteristics
- Technology
- TFT-LCD, PCAP touchscreen, multitouch screen, LED backlight
- Applications
- for vehicles
- Display size
- 7"
- Resolution
- 800 x 480
- Mounting
- for integration, chassis-mounted
- Other characteristics
- HDMI, VGA, DVI port, IP65, rugged, dust-proof, vandal-proof
- Width
152.4 mm
(6 in)- Height
91.44 mm
(3.6 in)- Thickness
33 mm
(1.299 in)- Operating temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
Product overview
Amongo's newly launched rear-mount LCD monitor AMG-07OPIT01T1 is a customized model for bus applications, featuring:
Specifications
Amongo's newly launched rear-mount LCD monitor AMG-07OPIT01T1 is a customized model for bus applications, featuring:
- Top-brand TFT panel for accurate color reproduction
- Industrial-grade components for continuous operation
- LED backlight for reduced power consumption
- PCAP touchscreen (10-point) for responsive operation; front IP65 rating, dustproof and vandal-resistant
- Rugged mechanical design to withstand harsh environments
- Mounting chassis available for simplified installation
Specifications
- Model Name: AMG-07OPIT01T1
- Screen Size: 7"
- Active Display Area (mm): 152.4(H)x91.44(V)
- Pixel Pitch (mm): 0.1905(H)x0.1905(V)
- Display Mode: Normally white
- Display Resolution (pixel): 800x480
- Contrast Ratio: 500:1
- Display Color: 16.2M
- Brightness: 450 nits
- Backlight: LED
- Viewing Angles (CR=10): 130(H); 110(V)
- Response Time (Typ. Tr+Tf): 30 ms
- Touch Screen: PCAP Touch (10 points)
- Tempered glass: Optional
- Signal Connector: VGA / DVI / HDMI / Audio
- Power Supply: DC 12V
- Touch Controller (Optional): RS232
- Dimension (VxHxT) mm: 182.5 x 124.5 x 33
- Operating Temperature: -20~70℃ (non-condensation)
- Storage Temperature: -20~70℃ (non-condensation)
- Relative Humidity: 5~90% RH
