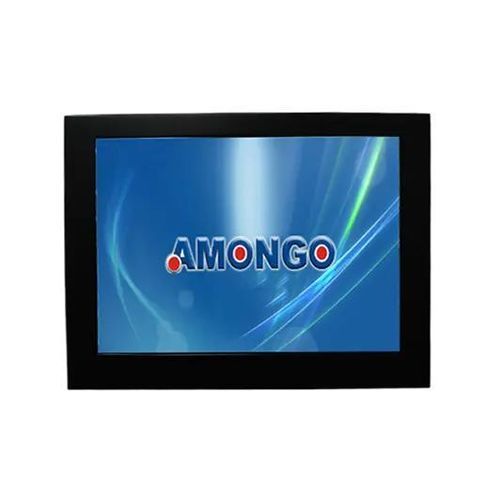

LCD monitor AMG-12IPTP01T1

resistive touch screenLED backlightprojected capacitive touchscreen

Product overview
The industrial flush rear-mount LCD monitor from Amongo (model AMG-12IPTP01T1) is designed for continuous operation in control rooms, operator consoles and embedded panel applications. It offers a compact rear-flush footprint, LED backlighting and multiple touchscreen options to suit industrial HMI requirements.

Key features

• 12.1" rear-flush mounting for integration into consoles and panels
• Industrial-grade components for reliable 24/7 operation
• Optional touchscreen variants: PCAP, resistive (4-wire/5-wire)
• VESA-style rear mounting holes for easy installation
• LED backlight with wide viewing angles
• Customization and OEM solutions available

Technical specifications (example)
Example specifications (AMG-10IPAM02T1):

• Model Name: AMG-10IPAM02T1
• Screen Size: 10.1"
• Display Resolution (pixel): 1024x600
• Contrast Ratio: 500:1
• Aspect Ratio: 16:9
• Touch screen (optional): 4-Wire Resistive Touch (5-Wire optional)
• Brightness (cd/㎡): 250/450 nits
• Backlight: LED
• Viewing Angles (CR =10): 140H x 90V
• Power Consumption: ≤8W
• Dimension (V x H x T): 255 x 150 x 236 (stretching)
• Touch Interface: USB (RS232 optional)
• Input Voltage: DC 12V ±15%
• HDMI Format: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p (50/60Hz)
• Operating Systems Support: Windows 7
• Operating Temperature: -20～50℃
• Storage Temperature: -30～65℃
• Relative Humidity: 5(%RH)～90(%RH)

Applications

• Industrial control panels and HMIs
• Control rooms and command consoles
• Embedded equipment and kiosk integration
• Automation and monitoring stations

Ordering & customization

• Available with different touchscreen technologies and interfaces (USB, RS232)
• OEM/ODM customization: housing, mounting, firmware options
• Contact Amongo sales for variant availability, lead time and technical drawings
