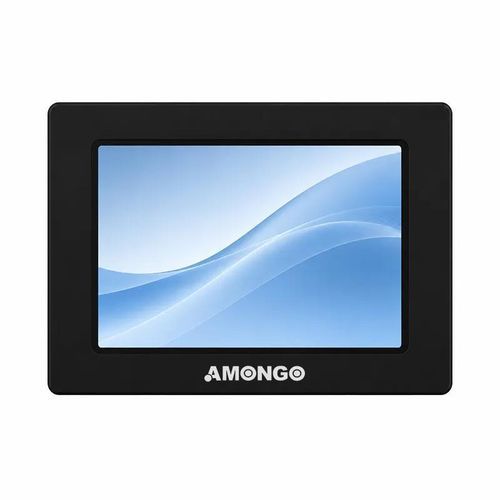

LCD monitor AMG-12IPPC01T1resistive touch screenLED backlightfor HMI interface
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, resistive touch screen, LED backlight
- Applications
- for HMI interface
- Display size
- 12.1"
- Resolution
- 800 x 600
- Mounting
- panel-mount
- Format
- pixel pitch
- Other characteristics
- VGA, DVI port, VGA-DVI port, wide viewing angle, wide temperature range, embedded, customizable
- Width
246 mm
(9.685 in)- Height
184.5 mm
(7.2638 in)- Operating temperature
Min.: -30 °C
(-22 °F)Max.: 80 °C
(176 °F)
Description
Product overview
This 12.1-inch panel-mount LCD monitor with resistive touch and integrated panel PC functionality is designed for industrial IoT and embedded equipment requiring a compact, wide-temperature display interface.
Key features
Typical applications
Specification
Screen Size: 12.1-inch
Active Display Area (mm): 246.0 (H) x 184.5 (V)
Pixel Pitch (mm): 0.3075 (H) x 0.3075 (V)
Display Mode: Normally white
Display Resolution (pixel): 800 x 600
Contrast Ratio: 600:1
Display Color: 16.2M
Brightness: 400 nits
Backlight: CCEL/LED
Viewing Angles (CR=10): 140 (H); 110 (V)
Response Time (Typ.Tr+Tf): 35 ms
Touch Screen: Resistive
Signal Connector: VGA/DVI
Power Input: DC 12V
Operating Temperature: -30～80℃
Storage Temperature: -30～80℃
Relative Humidity: 5%～90% RH
Technical specifications
This 12.1-inch panel-mount LCD monitor with resistive touch and integrated panel PC functionality is designed for industrial IoT and embedded equipment requiring a compact, wide-temperature display interface.
Key features
- 12.1-inch LCD panel with resistive touch
- Suitable for multiple industrial sectors (IoT, automation, transport)
- Designed for wide temperature operation
- Customizable configurations available
Typical applications
- Industrial equipment HMI
- Railway display and control panels
Specification
Screen Size: 12.1-inch
Active Display Area (mm): 246.0 (H) x 184.5 (V)
Pixel Pitch (mm): 0.3075 (H) x 0.3075 (V)
Display Mode: Normally white
Display Resolution (pixel): 800 x 600
Contrast Ratio: 600:1
Display Color: 16.2M
Brightness: 400 nits
Backlight: CCEL/LED
Viewing Angles (CR=10): 140 (H); 110 (V)
Response Time (Typ.Tr+Tf): 35 ms
Touch Screen: Resistive
Signal Connector: VGA/DVI
Power Input: DC 12V
Operating Temperature: -30～80℃
Storage Temperature: -30～80℃
Relative Humidity: 5%～90% RH
Technical specifications
- Model: AMG-12IPPC01T1
- Screen Size: 12.1-inch
- Active Area: 246.0 x 184.5 mm
- Resolution: 800 x 600 pixels
- Brightness: 400 nits
- Contrast Ratio: 600:1
- Display Color: 16.2M
- Backlight: CCEL/LED
- Viewing Angles: 140° (H) / 110° (V)
- Response Time: 35 ms
- Touch Type: Resistive
- Signal Inputs: VGA, DVI
- Power Input: DC 12V
- Operating / Storage Temp: -30～80℃
- Relative Humidity Range: 5%～90% RH
