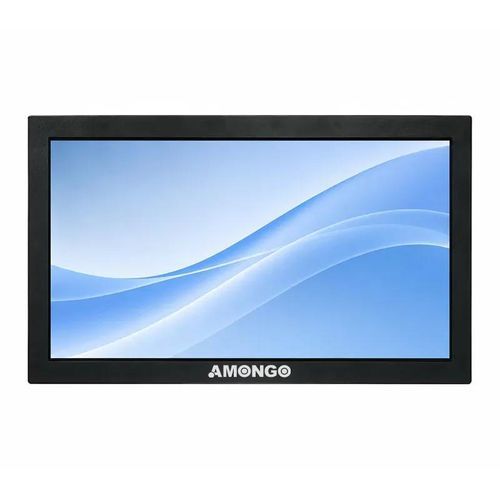

LCD monitor AMG-32IPPC05T2

multitouch screenLED backlightinfrared touchscreen

Product overview
This 31.5" industrial panel-mount LCD monitor AMG-32IPPC05T2 provides Full HD 1920×1080 resolution with an optional IR multi-touch (2 points). Designed for industrial environments, it features wide viewing angles, 450 nits brightness and LED backlight. Power input AC 110–230 V; operating temperature 0–50 °C.

Key features

• Optional IR multi-touch (2 points) and compatibility with multiple touchscreen technologies
• Wide viewing angles: 176° horizontal / 176° vertical
• LED backlight for long lifetime and stable luminance
• Thermally optimized design for efficient heat dissipation in industrial applications

Typical applications

• Industrial equipment and HMI panels
• Railway onboard and control-room displays

Technical specifications

• Screen size: 31.5"
• Active display area (mm): 679.92 (H) × 392.58 (V)
• Pixel pitch (mm): 0.18175 (H) × 0.18175 (V)
• Display mode: Normally Black
• Resolution: 1920 × 1080 (Full HD)
• Contrast ratio: 4000:1
• Display color: 16.2M
• Brightness: 450 nits
• Backlight: LED
• Viewing angles (CR=10): 176° (H), 176° (V)
• Response time (Tr+Tf typ): 8.5 ms
• Touch screen: Multi Touch (2 Points) / IR Touch
• Signal connector: VGA / DVI / AV / HDMI
• Power input: AC 110–230 V
• Operating temperature: 0–50 °C
• Storage temperature: -10–70 °C
• Relative humidity: 5%–90% RH
