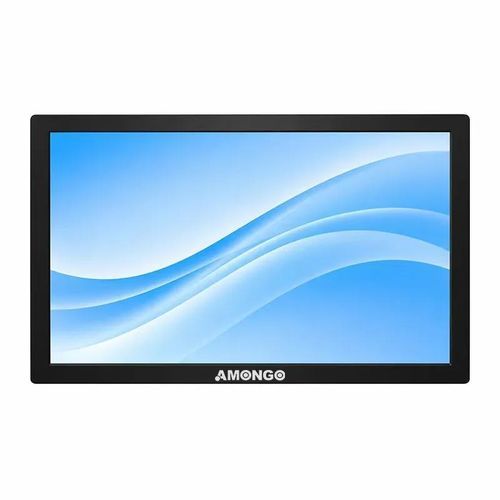

LCD monitor AMG-21OPSL01T1

multitouch screenLED backlightwith PCT touch screen

Product overview
This 21.5" rack-mount industrial LCD monitor delivers a Full HD 1920×1080 display with PCAP 10-point touch and LED backlight. It accepts VGA, DVI-D and HDMI inputs and is powered by DC 12V, making it suitable for integration into industrial kiosks and non-cash equipment.

Key features

• Full flat fillet surface
• PCAP 10-point capacitive touch
• Aluminum profile frame with VESA/OB lateral edge strip fixing
• LED backlight, 250 nits brightness
• Wide viewing angles: 178°/178°
• Designed and tested for industrial reliability

Typical applications

• Game terminals
• VTM (video teller machines)
• Kiosks
• Non-cash equipment

Specification
Screen Size: 21.5"
Active Display Area (mm): 476.064 (H) x 267.786 (V)
Pixel Pitch (mm): 0.24795 (H) x 0.24795 (V)
Display Mode: Normally Black
Resolution (pixel): 1920 x 1080
Contrast Ratio: 3000:1
Display Color: 16.7M
Brightness: 250 nits
Backlight: LED
Viewing Angles (CR=10): 178° (H); 178° (V)
Response Time (Tr+Tf): 18 ms
Touch Screen: PCAP 10-point (USB controller)
Signal Connector: VGA / DVI-D / HDMI / Audio
Power Input: DC 12V
Operating Temperature: 0–50 °C (non-condensing)
Storage Temperature: -20–60 °C (non-condensing)
Relative Humidity: 5%–90% RH

Technical specifications

• Model: AMG-21OPSL01T1
• Screen Size: 21.5"
• Active Display Area: 476.064 (H) x 267.786 (V) mm
• Resolution: 1920 x 1080
• Pixel Pitch: 0.24795 (H) x 0.24795 (V) mm
• Display Mode: Normally Black
• Contrast Ratio: 3000:1
• Colors: 16.7M
• Brightness: 250 nits
• Backlight Type: LED
• Viewing Angles: 178° / 178° (H / V, CR=10)
• Response Time: 18 ms (Tr+Tf)
• Touch: PCAP 10-point, USB controller
• Signal Inputs: VGA, DVI-D, HDMI, Audio
• Power Input: DC 12V
• Operating Temperature: 0–50 °C (non-condensing)
• Storage Temperature: -20–60 °C (non-condensing)
• Relative Humidity: 5%–90% RH
