LCD monitor AMG-18IPPC01T2

multitouch screenLED backlightwith PCT touch screen

Product overview

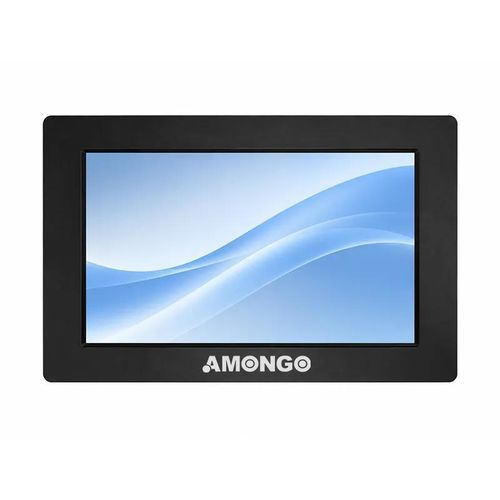

The AMG-18IPPC01T2 is an 18.5-inch industrial panel-mount LCD monitor with a PCAP 10-point touch interface and an aluminium front bezel designed for harsh environments. The front panel meets IP65 protection for water and dust resistance, suitable for industrial control and public display applications.

Key features

• 18.5" LCD with PCAP multi-touch (10 points)
• Aluminium panel-front cover design with panel-mount installation
• Front panel IP65: waterproof, dust-proof and vandal-resistant
• LED backlight with 250 nits brightness and 1000:1 contrast
• Multiple signal inputs: VGA / DVI-D / HDMI; USB touch controller

Typical applications

• Industrial equipment HMI and machine control panels
• Self-service kiosks and information terminals
• Railway and transport passenger information systems

Technical specifications

• Screen Size: 18.5"
• Active Display Area (mm): 409.8 (H) x 230.4 (V)
• Pixel Pitch (mm): 0.3 (H) x 0.3 (V)
• Display Mode: Normally white
• Display Resolution: 1366 x 768
• Color Depth: 16.7M
• Contrast Ratio: 1000:1
• Brightness: 250 nits
• Backlight: LED
• Viewing Angles (CR=10): 170° (H); 160° (V)
• Response Time (Typ. Tr+Tf): 5 ms
• Touch Screen: PCAP Touch (10 points)
• Signal Connector: VGA / DVI-D / HDMI
• Power Input: DC 12V
• Touch Controller: USB
• Operating Temperature: 0～50℃ (non-condensing)
• Storage Temperature: -20～60℃ (non-condensing)
• Relative Humidity: 5% ～ 90% (%RH)
