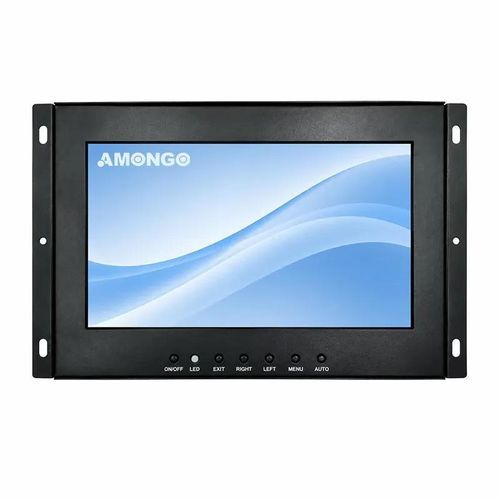

LCD monitor AMG-10IPDB01T1

multitouch screenLED backlightwith PCT touch screen

Product overview
This 10.1" rugged industrial PCAP touch display features an IP65 front panel and rack-mount design. It supports embedded or VESA installation and provides 10-point PCAP multi-touch with a surface hardness of Mohs 7. Signal inputs include HDMI and DisplayPort; power input is DC 12V. The display operates across wide industrial temperature ranges and is suited to continuous use in kiosks, AFC and non-cash equipment.

Key features

• PCAP multi-touch (10 points)
• Rack-mount and embedded/VESA installation options
• Front panel IP65: waterproof, dustproof and vandal-resistant
• Surface hardness: Mohs 7
• Validated through high-reliability testing

Typical applications

• AFC
• Non-cash equipment
• Kiosk

Specification
Screen Size: 10.1"
Active Display Area (mm): 216.96(H) x 135.6(V)
Pixel Pitch (mm): 0.1695(H) x 0.1695(V)
Display Mode: Normally Black
Display Resolution (pixel): 1280 x 800
Contrast Ratio: 800:1
Display Color: 16.7M
Brightness: 350 nits
Backlight: LED
Viewing Angles (CR=10): 170(H); 170(V)
Response Time (Typ. Tr+Tf): 25 ms
Touch Screen: PCAP Touch (10 points)
Signal Connector: HDMI / DP
Power Input: DC 12V
Touch Controller: USB
Operating Temperature: -20～70℃ (non-condensation)
Storage Temperature: -30～80℃ (non-condensation)
Relative Humidity: 5(%RH)～90(%RH)

Technical specifications

• Screen Size: 10.1"
• Active Display Area: 216.96(H) x 135.6(V) mm
• Pixel Pitch: 0.1695(H) x 0.1695(V) mm
• Display Mode: Normally Black
• Resolution: 1280 x 800 pixels
• Contrast Ratio: 800:1
• Color Depth: 16.7M
• Brightness: 350 nits
• Backlight Type: LED
• Viewing Angles: 170° horizontal / 170° vertical (CR=10)
• Response Time: 25 ms (Typ. Tr+Tf)
• Touch: PCAP 10-point multi-touch
• Signal Input: HDMI, DP
• Power Input: DC 12V
• Touch Controller Interface: USB
• Operating Temp: -20 to 70°C (non-condensing)
• Storage Temp: -30 to 80°C (non-condensing)
• Relative Humidity: 5% to 90% RH
