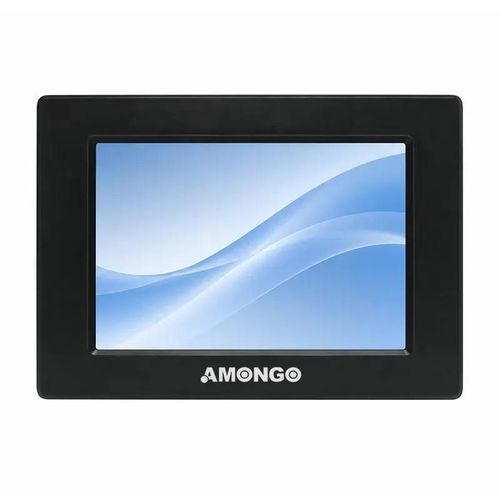

LCD monitor AMG-17IPPC01T1multitouch screenresistive touch screenLED backlight
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, resistive touch screen, PCAP touchscreen, multitouch screen, LED backlight
- Applications
- for industrial machines, for vehicles, CCFL backlight
- Display size
- 17"
- Resolution
- 1280 x 1024
- Mounting
- panel-mount
- Other characteristics
- VGA, DVI port, aluminum, VGA-DVI port, wide viewing angle, highly reliable
- Width
337.92 mm
(13.3039 in)- Height
270.336 mm
(10.6431 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)
Description
Product overview
This 17-inch industrial PCAP multi-touch LCD monitor is designed for panel mounting and features an aluminum frame housing suitable for industrial and transportation environments.
Key features
Typical applications
Specifications
Screen Size: 17"
Active Display Area (mm): 337.920 (H) x 270.336 (V)
Pixel Pitch (mm): 0.264 (H) x 0.264 (V)
Display Mode: Normally White
Display Resolution (pixel): 1280 x 1024
Contrast Ratio: 1000:1
Display Color: 16.7M
Brightness: 250 nits
Backlight: CCFL / LED
Viewing Angles (CR=10): 170° (H); 160° (V)
Response Time (Typ. Tr+Tf): 5 ms
Touch Screen: PCAP MultiTouch (specification lists resistive touch)
Signal Connector: VGA / DVI
Power Input: DC 2.0
Operating Temperature: 0 to 50 °C
Storage Temperature: -20 to 60 °C
Relative Humidity: 5% to 90% RH
Technical specifications
This 17-inch industrial PCAP multi-touch LCD monitor is designed for panel mounting and features an aluminum frame housing suitable for industrial and transportation environments.
Key features
- PCAP MultiTouch Screen
- Aluminum frame design
- Wide viewing angles
- High reliability and long lifetime
- Effective heat dissipation
Typical applications
- Industrial equipment
- Railway systems
Specifications
Screen Size: 17"
Active Display Area (mm): 337.920 (H) x 270.336 (V)
Pixel Pitch (mm): 0.264 (H) x 0.264 (V)
Display Mode: Normally White
Display Resolution (pixel): 1280 x 1024
Contrast Ratio: 1000:1
Display Color: 16.7M
Brightness: 250 nits
Backlight: CCFL / LED
Viewing Angles (CR=10): 170° (H); 160° (V)
Response Time (Typ. Tr+Tf): 5 ms
Touch Screen: PCAP MultiTouch (specification lists resistive touch)
Signal Connector: VGA / DVI
Power Input: DC 2.0
Operating Temperature: 0 to 50 °C
Storage Temperature: -20 to 60 °C
Relative Humidity: 5% to 90% RH
Technical specifications
- Screen Size: 17"
- Active Display Area: 337.920 (H) x 270.336 (V) mm
- Pixel Pitch: 0.264 (H) x 0.264 (V) mm
- Display Mode: Normally White
- Resolution: 1280 x 1024 pixels
- Contrast Ratio: 1000:1
- Display Color: 16.7M
- Brightness: 250 nits
- Backlight: CCFL / LED
- Viewing Angles: 170° (H) / 160° (V) (CR=10)
- Response Time: 5 ms (Typ. Tr+Tf)
- Touch Screen: Resistive
- Signal Connector: VGA / DVI
- Power Input: DC 2.0
- Operating Temperature: 0 to 50 °C
- Storage Temperature: -20 to 60 °C
- Relative Humidity: 5% to 90% RH
