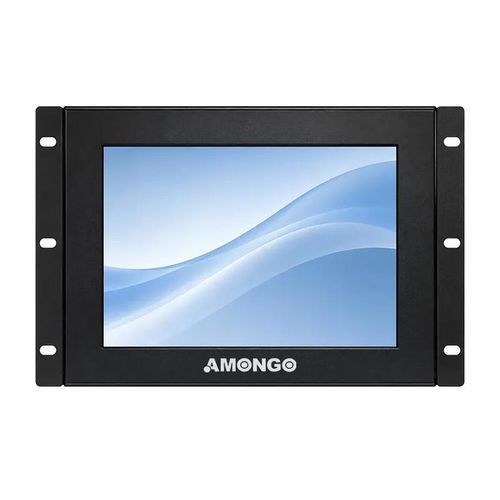

LCD monitor AMG-08IPZY03T1resistive touch screenLED backlightprojected capacitive touchscreen
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, resistive touch screen, projected capacitive touchscreen, PCAP touchscreen, LED backlight
- Applications
- for industrial machines, for HMI interface, for vehicles
- Display size
- 8.4"
- Resolution
- 800 x 600
- Mounting
- rack-mount
- Other characteristics
- VGA, USB, DVI port, high-brightness, aluminum, IP65, NEMA 4
- Width
170.4 mm
(6.7087 in)- Height
127.8 mm
(5.0315 in)- Operating temperature
Max.: 85 °C
(185 °F)Min.: -30 °C
(-22 °F)
Description
Product overview
This 8.4" rack-mount industrial LCD monitor AMG-08IPZY03T1 is designed for operation in demanding environments and for integration into 19" rack enclosures.
Key features
Typical applications
Advantages
Specification
Screen Size: 8.4"
Active Display Area (mm): 170.4 (H) x 127.8 (V)
Pixel Pitch (mm): 0.213 (H) x 0.213 (V)
Display Mode: Normally white
Display Resolution (pixel): 800 x 600
Contrast Ratio: 600:1
Display Color: 16.2M
Brightness: 1000 nits
Backlight: LED
Viewing Angles (CR=10): 150° (H) x 150° (V)
Response Time (Typ. Tr+Tf): 35 ms
Touch Screen: PCT Touch (10 points)
Signal Connector: VGA / DVI / USB
Power Input: DC 2.0
Operating Temperature: -30 ～ 85 ℃
Storage Temperature: -30 ～ 85 ℃
Relative Humidity: 5%RH ～ 90%RH
Technical specifications
This 8.4" rack-mount industrial LCD monitor AMG-08IPZY03T1 is designed for operation in demanding environments and for integration into 19" rack enclosures.
Key features
- 8.4" display, 800 × 600 resolution
- Optional touch: PCAP (10-point), resistive
- Aluminium front housing with IP65 / NEMA 4 protection
- High-brightness LED backlight (1000 nits)
- Signal inputs: VGA, DVI, USB
Typical applications
- Industrial control panels and machinery
- Railway onboard and wayside systems
- Rack-mounted operator stations and monitoring
Advantages
- Branded LCD panel with wide viewing angles suitable for continuous 24/7 operation
- Touchscreen options (PCAP, resistive) for user interaction
- IP65/NEMA 4 aluminium front panel to protect against dust and splash
- Designed for rack installation with standard mounting enclosures
- Customization services available for connectors, interfaces and firmware
Specification
Screen Size: 8.4"
Active Display Area (mm): 170.4 (H) x 127.8 (V)
Pixel Pitch (mm): 0.213 (H) x 0.213 (V)
Display Mode: Normally white
Display Resolution (pixel): 800 x 600
Contrast Ratio: 600:1
Display Color: 16.2M
Brightness: 1000 nits
Backlight: LED
Viewing Angles (CR=10): 150° (H) x 150° (V)
Response Time (Typ. Tr+Tf): 35 ms
Touch Screen: PCT Touch (10 points)
Signal Connector: VGA / DVI / USB
Power Input: DC 2.0
Operating Temperature: -30 ～ 85 ℃
Storage Temperature: -30 ～ 85 ℃
Relative Humidity: 5%RH ～ 90%RH
Technical specifications
- Screen Size: 8.4"
- Active Display Area (mm): 170.4(H) x 127.8(V)
- Pixel Pitch (mm): 0.213(H) x 0.213(V)
- Display Mode: Normally white
- Display Resolution (pixel): 800 x 600
- Contrast Ratio: 600:1
- Display Color: 16.2M
- Brightness: 1000 nits
- Backlight: LED
- Viewing Angles (CR=10): 150° (H) x 150° (V)
- Response Time (Typ. Tr+Tf): 35 ms
- Touch Screen: PCT Touch (10 points)
- Signal Connector: VGA / DVI / USB
- Power Input: DC 2.0
- Operating Temperature: -30 ～ 85 ℃
- Storage Temperature: -30 ～ 85 ℃
- Relative Humidity: 5%RH ～ 90%RH
