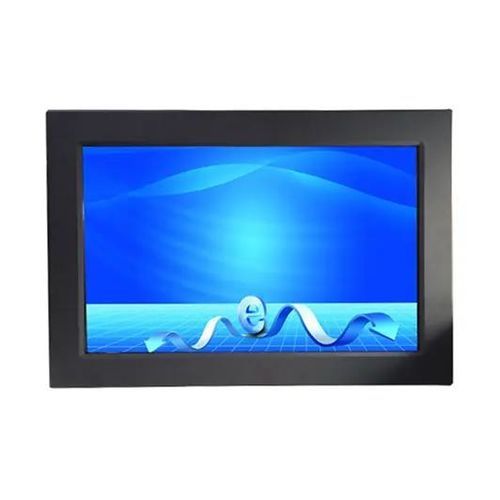

LCD monitor AMG-22IPPC01T4

resistive touch screenLED backlightprojected capacitive touchscreen

Product overview
The AMG-22IPPC01T4 is an industrial panel-mount 21.5-inch LCD monitor designed for continuous operation in industrial and commercial environments. It features a 1680 x 1050 resolution, LED backlight and IR touch capability, making it suitable for control panels, HMI stations and kiosk applications.

Features

• High-quality branded LCD panel with 178° viewing angles and 16.7M colors
• Brightness 300 cd/㎡ and LED backlight for consistent image performance
• Supports multiple touchscreen technologies (PCAP, Resistive, IR, SAW); configured with IR touch
• Rugged mechanical design with protection against water, dust, shock and vibration; meets industrial IP requirements
• Video inputs: VGA and DVI; suitable for industrial interfaces
• Operating range adapted to industrial use (0 °C to 50 °C); storage -20 °C to 60 °C; humidity 5 %RH to 90 %RH
• Customization options available for mounting, I/O and touch configuration

Technical specifications

• Model Name: AMG-22IPPC01T4
• Screen Size: 21.5 inch
• Active Display Area (mm): 473.76(H)x296.1(V)
• Pixel Pitch (mm): 0.282(H)x0.282(V)
• Display Mode: Normally white
• Display Resolution (pixel): 1680X1050
• Contrast Ratio: 1000:1
• Display Color: 16.7M color
• Brightness (CD/㎡): 300
• Backlight: LED
• Viewing Angles (CR =10): 178Hx178V
• Response Time (Typ. Tr+Tf): 8ms
• Signal Connector: VGA/DVI
• Power Consumption: DC2.0
• Dimension (VxHxT): 573.7X400.1X66.9
• Operating Temperature: 0～50℃
• Storage Temperature: -20～60℃
• Relative Humidity: 5(%RH)～90(%RH)
• Touch Screen: IR Touch
