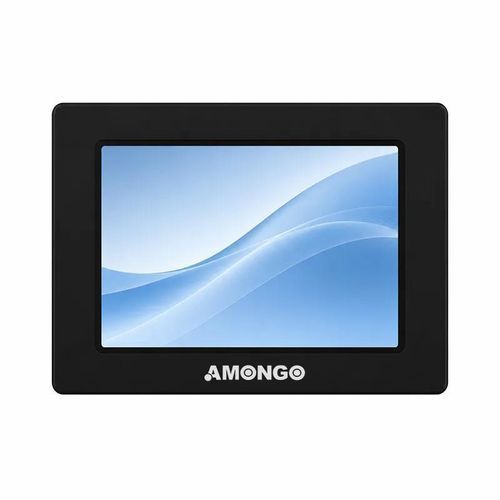

LCD monitor AMG-12IPTP01T1LED backlightPCAP touchscreenindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, PCAP touchscreen, LED backlight
- Applications
- industrial
- Display size
- 12.1"
- Resolution
- 1024 x 768
- Mounting
- VESA mounting, wall-mount
- Other characteristics
- VGA, USB, DVI port, high-brightness, wide viewing angle, compact, stainless steel, rugged
- Width
245.76 mm
(9.6756 in)- Height
184.32 mm
(7.2567 in)- Operating temperature
Min.: -30 °C
(-22 °F)Max.: 80 °C
(176 °F)
Description
Overview
This 12.1-inch industrial VESA wall-mount PCAP (projected capacitive) touch LCD monitor is designed for kiosks, ATMs and other unattended equipment requiring a compact, bright display.
Key features
Typical applications
Specifications
This 12.1-inch industrial VESA wall-mount PCAP (projected capacitive) touch LCD monitor is designed for kiosks, ATMs and other unattended equipment requiring a compact, bright display.
Key features
- PCAP touchscreen (projected capacitive)
- Plastic front frame with rugged steel housing
- High-reliability testing and industrial-grade components
- High brightness: 500 nits
- Optional ambient light sensor
Typical applications
- Self-service kiosks
- VTM (video teller machines)
- ATM terminals
- Information and ticketing kiosks
Specifications
- Screen size: 12.1"
- Active display area: 245.76 (H) × 184.32 (V) mm
- Pixel pitch: 0.24 (H) × 0.24 (V) mm
- Display mode: Normally white
- Resolution: 1024 × 768 pixels
- Contrast ratio: 700:1
- Display colors: 16.2M
- Brightness: 500 nits
- Backlight: LED
- Viewing angles: 160° (H) × 160° (V) (CR=10)
- Response time: 35 ms (typ. Tr+Tf)
- Touch type: PCAP (projected capacitive)
- Signal inputs: VGA, DVI
- Power input: DC 12V
- Touch controller interface: USB
- Operating temperature: -30 to 80°C (non-condensing)
- Storage temperature: -30 to 80°C (non-condensing)
- Relative humidity: 5% to 90% RH
