LCD monitor AMG-22IPPC01T6
resistive touch screenLED backlightinfrared touchscreen

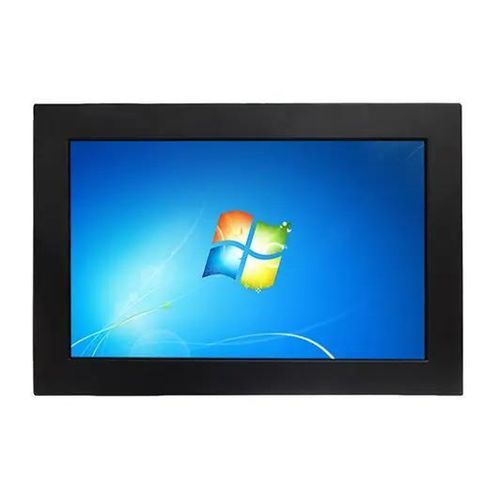

LCD monitor - AMG-22IPPC01T6 - AMONGO Display Technology(ShenZhen)Co.,LTD - resistive touch screen / LED backlight / infrared touchscreen
LCD monitor - AMG-22IPPC01T6 - AMONGO Display Technology(ShenZhen)Co.,LTD - resistive touch screen / LED backlight / infrared touchscreen
LCD monitor - AMG-22IPPC01T6 - AMONGO Display Technology(ShenZhen)Co.,LTD - resistive touch screen / LED backlight / infrared touchscreen - image - 2
LCD monitor - AMG-22IPPC01T6 - AMONGO Display Technology(ShenZhen)Co.,LTD - resistive touch screen / LED backlight / infrared touchscreen - image - 3
LCD monitor - AMG-22IPPC01T6 - AMONGO Display Technology(ShenZhen)Co.,LTD - resistive touch screen / LED backlight / infrared touchscreen - image - 4
Add to favorites
Compare this product
Go to the AMONGO Display Technology(ShenZhen)Co.,LTD website for more information

Characteristics

Technology
LCD, resistive touch screen, PCAP touchscreen, infrared touchscreen, LED backlight
Display size
22"
Resolution
1680 x 1050
Mounting
panel-mount
Other characteristics
USB, DVI port, high-brightness, VGA-DVI port, wide viewing angle, sunlight-readable, customizable, dust-proof, water-resistant
Width

400.1 mm
(15.752 in)

Height

573.7 mm
(22.5866 in)

Thickness

60.8 mm
(2.394 in)

Operating temperature

Min.: 0 °C
(32 °F)

Max.: 50 °C
(122 °F)

Description

Product Overview
The industrial-grade panel-mount LCD monitor AMG-22IPPC01T6 from Amongo is designed for continuous operation in industrial and commercial environments. It combines branded LCD panels, LED backlight and multiple touchscreen options to support integration into control panels and human-machine interfaces.

Key features
  • Branded LCD panel with wide viewing angles and industrial-grade components for reliable 24/7/365 operation
  • Multiple touchscreen technologies available: PCAP, resistive, IR
  • Mechanical design suitable for harsh environments: anti-shock and anti-vibration
  • IP protection to resist water, dust and dirt ingress
  • Sunlight-readable brightness: 1000 nits
  • Customization services available for connectors, finishes and interface options


Specifications
Model Name : AMG-22IPPC01T6
Screen Size : 22"
Active Display Area (mm) : 473.76(H)x296.1(V)
Pixel Pitch (mm) : 0.282(H)x0.282(V)
Display Mode : Normally white
Display Resolution (pixel) : 16.7M
Contrast Ratio : 1680x1050
Display Color : 1000:1
Brightness (CD/㎡) : 1000nits
Backlight : LED
Viewing Angles (CR =10) : 170(H);160(V)
Response Time(Typ.Tr+Tf) : 25ms
Signal Connector : VGA/DVI-D/USB
Power Consumption : DC 12V
Dimension(VxHxT) : 573.7x400.1x60.8
Operating Temperature : 0～50℃
Storage Temperature : -20～60℃
Relative Humidity : 5(%RH)～90(%RH)

Technical specifications
  • Model Name: AMG-22IPPC01T6
  • Screen Size: 22"
  • Active Display Area (mm): 473.76(H)x296.1(V)
  • Pixel Pitch (mm): 0.282(H)x0.282(V)
  • Display Mode: Normally white
  • Display Resolution (pixel): 16.7M
  • Contrast Ratio: 1680x1050
  • Display Color: 1000:1
  • Brightness (CD/㎡): 1000nits
  • Backlight: LED
  • Viewing Angles (CR =10): 170(H);160(V)
  • Response Time (Typ.Tr+Tf): 25ms
  • Signal Connector: VGA/DVI-D/USB
  • Power Consumption: DC 12V
  • Dimension (VxHxT): 573.7x400.1x60.8
  • Operating Temperature: 0～50℃
  • Storage Temperature: -20～60℃
  • Relative Humidity: 5(%RH)～90(%RH)
