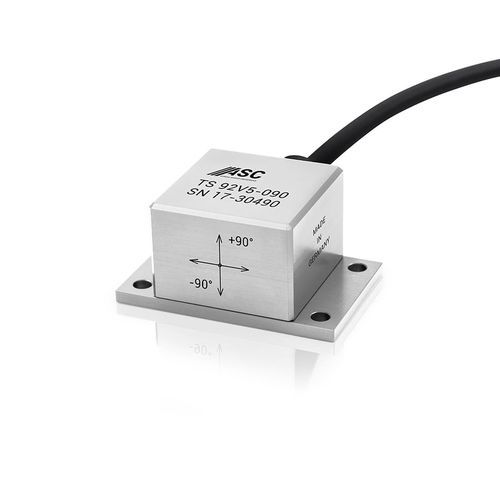

2-axis inclinometer ASC TS-92V5

voltage outputanalogcapacitive

Product overview
The ASC TS-92V5 is a biaxial MEMS capacitive tilt sensor with a quasi-differential analog voltage output. It delivers ultra-fine resolution and stable long-term performance, making it suitable for condition monitoring and structural health monitoring in industrial environments.

Technology
The ASC TS series uses MEMS capacitive technology. Integrated electronics provide a quasi-differential analog output (±2 V full-scale) and a wide supply range (6 to 40 VDC). The TS-92V5 offers resolution < 0.005° and long-term stability with scale-factor drift ±300 ppm and bias drift ±0.009°.

Housing
Stainless steel housing with protection class IP68. The sensor includes an integrated cable; length and connector type are configurable to suit installation requirements.

Applications
Well adapted for condition and structural health monitoring tasks such as:

• Detection of tower sway
• Track alignment and axle alignment
• Compensation and leveling of truck chassis
• Angular positioning of machine tools

Sensor details

• Sensor type: Tilt sensor (analog)
• Sensor technology: MEMS capacitive
• Number of sensitive directions: Biaxial
• Output signal: Analog voltage (quasi-differential, ±2 V FSO)
• Measurement range [°]: 15, 90 (±90° option referenced)
• Operating temperature: -35°C to +120°C
• Protection class: IP68
• Housing material: Stainless steel

Technical specifications

• Model: ASC TS-92V5
• Technology: MEMS capacitive
• Sensitive axes: Biaxial
• Output: Quasi-differential analog voltage, ±2 V full scale output (FSO)
• Supply voltage: 6 to 40 VDC
• Resolution: < 0.005°
• Long-term stability: scale factor ±300 ppm; bias ±0.009°
• Measurement ranges available: 15° and 90° (±90° referenced)
• Housing: Stainless steel, integrated cable (configurable length and connectors)
• Protection: IP68
• Operating temperature range: -35°C to +120°C
