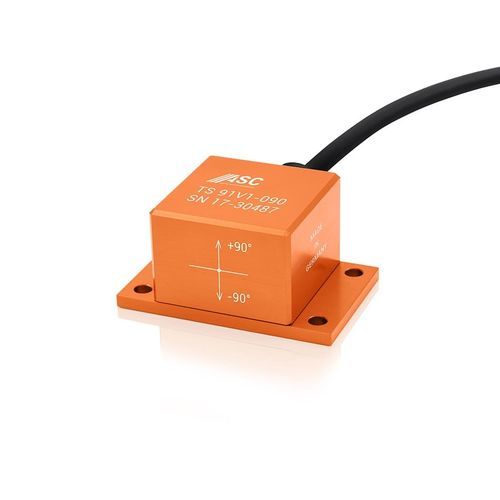

1-axis inclinometer ASC TS-91V1voltage outputanalogcapacitive
Add to favorites
Compare this product
Characteristics
- Number of axes
- 1-axis
- Output
- voltage output, analog
- Technology
- capacitive, MEMS
- Other characteristics
- high-resolution, IP67, with aluminum housing
- Inclination
Max.: 90 °
Min.: -90 °
- Resolution
0.005 °
Description
Product overview
ASC TS-91V1 is a uniaxial tilt sensor from the ASC TS series based on MEMS capacitive technology. The integrated electronics provide a quasi-differential analog voltage output and support a flexible supply voltage range from 6 to 40 VDC. The sensor is supplied in a lightweight aluminum housing with protection class IP67 and offers an integrated cable with configurable length and connector options.
Key features
Technology
The ASC TS series uses proven MEMS capacitive sensing with on-board electronics that deliver a quasi-differential analog voltage (±2 V FSO). The design ensures high resolution and long-term stability (scale factor ±300 ppm, bias ±0.009°).
Housing
Lightweight aluminum housing with protection class IP67. Integrated cable can be configured in length and fitted with various connector options.
Applications
Environmental and mechanical
Characteristics / technical specifications
ASC TS-91V1 is a uniaxial tilt sensor from the ASC TS series based on MEMS capacitive technology. The integrated electronics provide a quasi-differential analog voltage output and support a flexible supply voltage range from 6 to 40 VDC. The sensor is supplied in a lightweight aluminum housing with protection class IP67 and offers an integrated cable with configurable length and connector options.
Key features
- Sensor technology: MEMS capacitive
- Sensing axis: Uniaxial
- Output: Quasi-differential analog voltage, ±2 V FSO
- Measurement range variants: 15°, 90° (up to ±90° variants)
- Resolution: < 0.005°
- Supply voltage: 6 to 40 VDC
Technology
The ASC TS series uses proven MEMS capacitive sensing with on-board electronics that deliver a quasi-differential analog voltage (±2 V FSO). The design ensures high resolution and long-term stability (scale factor ±300 ppm, bias ±0.009°).
Housing
Lightweight aluminum housing with protection class IP67. Integrated cable can be configured in length and fitted with various connector options.
Applications
- Tower sway detection
- Track and axle alignment
- Truck chassis compensation
- Angular positioning of machine tools
Environmental and mechanical
- Operating temperature: -20°C to +70°C
- Protection class: IP67
- Housing material: Aluminum
Characteristics / technical specifications
- Model: ASC TS-91V1
- Sensor technology: MEMS capacitive
- Sensing axis: Uniaxial
- Output: Quasi-differential analog voltage, ±2 V FSO
- Measurement range (available variants): 15°, 90° (up to ±90°)
- Resolution: < 0.005°
- Supply voltage: 6 to 40 VDC
- Temperature range: -20°C to +70°C
- Protection class: IP67
- Housing material: Aluminum
- Cable: Integrated cable with configurable length and connector options
