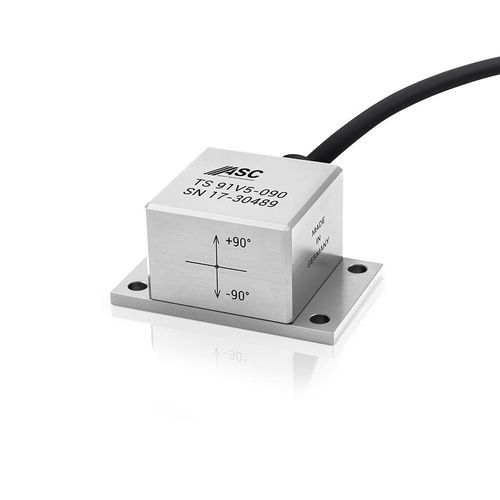

Single-axis inclinometer ASC TS-91V5

analogvoltage outputcapacitive

Sensor type
Uniaxial tilt sensor with quasi-differential analog voltage output (±2 V FSO). Designed for precise inclination measurement in industrial monitoring applications.

Technology
Sensors of the ASC TS series use MEMS technology with a capacitive sensing principle. Integrated electronics provide a quasi-differential analog output (±2 V FSO) and a flexible supply voltage from 6 to 40 VDC. The ASC TS-91V5 delivers a resolution of <0.005° and long-term stability: scale factor ±300 ppm, bias ±0.009°.

Housing
Robust stainless steel housing with protection class IP68. The sensor features an integrated cable with configurable length and available connector options.

Applications
High resolution and long-term stability make this sensor suitable for tower sway detection, track and axle alignment, truck chassis compensation and angular positioning of machine tools.

Main product details

• Sensor technology: MEMS capacitive
• Number of sensitive directions: Uniaxial
• Output signal: Quasi-differential analog voltage
• Analog output amplitude: ±2 V FSO
• Measurement ranges available: 15°, 90°
• Resolution: <0.005°
• Long-term stability: scale factor ±300 ppm; bias ±0.009°
• Supply voltage: 6–40 VDC
• Temperature range: -35°C to +120°C
• Protection class: IP68
• Housing material: stainless steel
• Connection: Integrated cable (length configurable) or connectors

Technical specifications

• Series: ASC TS
• Model: ASC TS-91V5
• Type: Uniaxial tilt sensor (analog)
• Sensing principle: Capacitive (MEMS)
• Output: Quasi-differential analog voltage, ±2 V FSO
• Resolution: <0.005°
• Measurement ranges: ±15° and ±90° variants
• Scale factor stability: ±300 ppm (long-term)
• Bias stability: ±0.009° (long-term)
• Supply voltage range: 6–40 VDC
• Operating temperature: -35°C to +120°C
• Protection class: IP68
• Housing: Stainless steel
• Connection: Integrated cable with configurable length and connector options
