2-axis inclinometer ASC TS-92V1

voltage outputanalogcapacitive

Overview

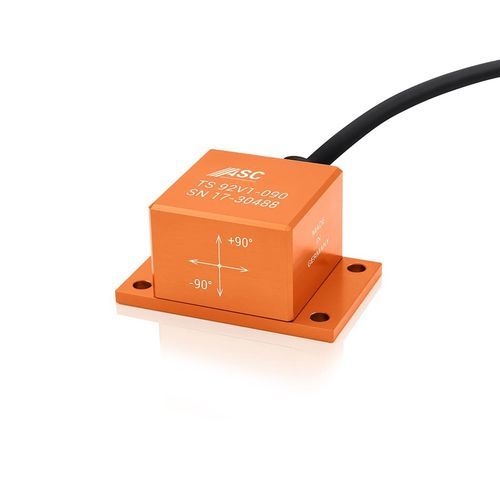

The biaxial inclination sensor ASC TS-92V1 uses MEMS capacitive technology. The integrated electronics provide a quasi-differential analog voltage output with ±2 V span and support a flexible supply from 6 to 40 VDC. The sensor offers high resolution and long-term stability, making it suitable for demanding condition and structural health monitoring applications.

Technology and output

• Sensor technology: MEMS capacitive
• Axes: Biaxial (two-axis)
• Signal output: Analog voltage (quasi-differential), ±2 V span
• Supply voltage: 6 to 40 VDC
• Resolution: < 0.005°
• Long-term stability: Scale factor ±300 ppm, bias ±0.009°
• Available measuring ranges: 15°, 90°

Housing and environmental data

• Housing material: Aluminum
• Ingress protection: IP67
• Integrated cable with configurable length and connector options
• Operating temperature: -25 °C to +100 °C

Applications

• Tower swing detection
• Track alignment and axle measurement
• Compensation of truck chassis
• Angular positioning of machine tools

Characteristics / Technical specifications (summary)

• Model: ASC TS-92V1
• Sensor technology: MEMS, capacitive
• Axes: Biaxial
• Signal output: Analog quasi-differential voltage ±2 V
• Supply: 6–40 VDC
• Resolution: < 0.005°
• Long-term stability scale factor: ±300 ppm
• Long-term stability bias: ±0.009°
• Available measuring ranges: 15°, 90°
• Housing: Aluminum, protection class IP67
• Integrated configurable cable
• Operating temperature: -25 °C to +100 °C
