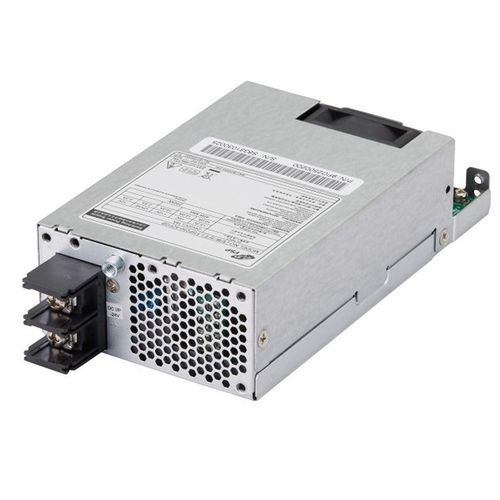

1U power supply FSP250-52FGB

AC/DCwith short-circuit protectionwith overload protection

FSP250-52FGB – 250W Flex ATX / IPC Power Supply (24 V DC Input) The FSP250-52FGB is a durable, high-performance 250W Flex ATX (1U) industrial level power supply with low ripple & noise, engineered for use in demanding environments. The power supply operates from -18V to -36V DC input range, which can be powered by battery or DC source. The product also offers protections against over-current (OCP), over-voltage (OVP), over-temperature (OTP), and short-circuit. It is also high-potential (Hi-pot) tested and has an MTBF of 100,000 hours at 25°C. Cooling is provided by a built-in 40 mm quiet fan. With its global certifications, safety, and EMC standards, it’s great for regulated applications. Key Features - Wide DC Input: –18 V to –36 V input range (typically –24 V DC), suitable for battery or industrial use. - High Reliability: 100% burn-in and Hi-Pot tested with MTBF of 100,000 h @ 25 °C. - Compact & Lightweight: Flex ATX / 1U form factor (150 × 81.5 × 40.5 mm), 0.78 kg, with 40 mm cooling fan. - High Protection: OCP, OTP, OVP, short-circuit protection, and resettable shutdown. - Clean Output: Low ripple and noise ensure stable performance in sensitive systems. - Safety & Compliance: CE, UL, RoHS, WEEE, and UKCA certified. Specifications - Cooling: Fan 40mm - Dimensions (L*W*H)(mm): 150*81.5*40.5mm - Output Power: 250W - Size: Flex ATX - Socket: C14 - Weight: 0.78kg Legislation and Compliance - RoHS - CE - UL - WEEE - UKCA Technical characteristics / specifications - Model: FSP250-52FGB(24V) - Article Number: AX1020 - Manufacturer Code: 9PD2500202 - Manufacturer: FSP Technology Ltd. - Input Voltage: –18 V to –36 V DC - Output Power: 250W - Form Factor: Flex ATX / 1U - Dimensions: 150 × 81.5 × 40.5 mm - Weight: 0.78 kg - Cooling: 40 mm fan - Protections: OCP, OVP, OTP, short-circuit - Certifications: CE, UL, RoHS, WEEE, UKCA - MTBF: 100,000 h @ 25°C
