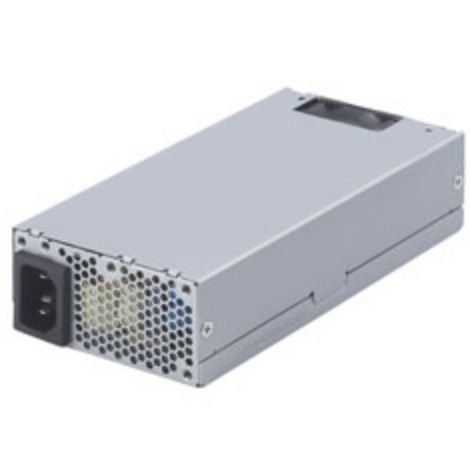

Tabletop power supply FSP300-50FFB

AC/DCswitchingwith short-circuit protection

300 W Flex ATX Power Supply – FSP300-50FFB The FSP300-50FFB is a durable, high-performance 300 W Flex ATX industrial level power supply, engineered for use in demanding environments such as servers, IPCs, embedded, and automation platforms. Supporting universal input (90–264 VAC) with an 80 PLUS Bronze rating and active Power Factor Correction (PFC), this supply delivers reliable and efficient power. The product also offers protections against over-current (OCP), over-voltage (OVP), over-temperature (OTP), short-circuit, and resettable power shutdown. It includes 100% high-potential (Hi-pot) testing, a burn-in at 50 °C, and an MTBF of 100,000 hours. Cooling is provided by a built-in 40 mm cooling fan. With its global certifications, safety and EMC standards, it’s great for regulated applications. - Compact Form: 150 × 81.5 × 40.5 mm, ideal for space-constrained installations. - Power & Efficiency: 300 W continuous output with 80 PLUS Bronze efficiency and active PFC for reduced heat and energy cost. - Effective Cooling: 40 mm fan ensures thermal stability and less noise. - Full Electrical Protection: OVP, short-circuit protection on all outputs, active PFC, and resettable shutdown. - Quality Assurance: MTBF of 100,000 h at 25 °C. - Universal Compatibility: Supports 90–264 VAC via C14 inlet. - Certifications & Compliance: CB, TUV, UL, FCC, CE, EMC, ROHS. - Cooling: Fan 40mm - Dimensions: 150 × 81.5 × 40.5 mm - Output Power: 300 W - Size: Flex ATX - Socket: C14 - Weight: 0.74 kg - MTBF: 100,000 h at 25 °C - Input Voltage: 90–264 VAC - Certifications: CB, TUV, UL, FCC, CE, EMC, ROHS - Article Number: AX1039 - Manufacturer Code: 9PA300H403
