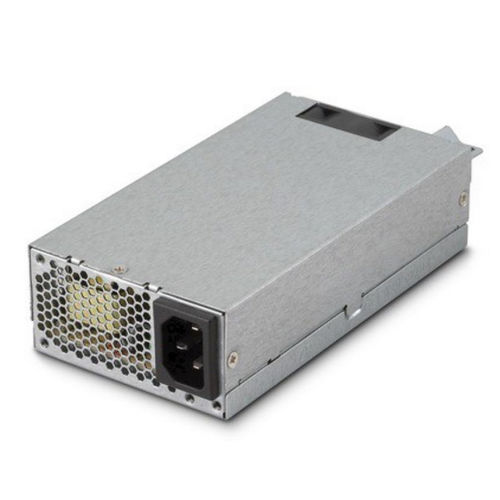

1U power supply FSP250-50FEB

AC/DCwith short-circuit protectionwith overcurrent protection

250 W Flex ATX (1U) Power Supply – FSP250-50FEB The FSP250-50FEB is a durable, high-performance 250 W Flex ATX /1U power supply, engineered for use in demanding environments such as small industrial PCs, 1U servers, or embedded systems. Supporting universal input (90–264 VAC) with an 80 PLUS Bronze rating and active Power Factor Correction (PFC), this supply delivers reliable and efficient power. The product also offers protections against over-current (OCP), over-voltage (OVP), over-temperature (OTP), short-circuit protection, and resettable shutdown functionality. Cooling is done by a built-in 40 mm smart-controlled ball-bearing fan. With its global certifications, safety and EMC standards, it’s great for regulated applications. Key Features - Compact Form: 150 × 81.5 × 40.5 mm design, ideal for tight enclosures. - Power & Efficiency: 250 W continuous output with 80 PLUS Bronze (~85%) efficiency and active PFC ensuring clean, stable power with reduced heat and energy cost. - Effective Cooling: 40 mm ball-bearing fan featuring smart speed control ensures thermal stability and less noise. - Full Electrical Protection: OCP, OVP, short-circuit, and resettable shutdown features to safeguard the system. - Quality Assurance: 100% Hi-Pot testing and MTBF rating of 100,000 hours at 25 °C ensure enduring performance and operational altitude up to 5,000 m. - Universal Compatibility: Supports 90–264 VAC via C14 inlet. - Multi-Rail Output: - +3.3 V at 12 A - +5 V at 14 A - +12 V at 18 A - –12 V at 0.3 A - +5 V at 2.5 A - Combined +3.3 V and +5 V output limited to 80 W. - Certifications & Compliance: UL, CSA, TUV, Nemko, CE, CCC, CB. ROHS. Specifications - Cooling: Fan 40mm - Dimensions (L*W*H)(mm): 150*81.5*40.5mm - Efficiency: 80PLUS - Output Power: 250W - Size: Flex ATX - Socket: C14 - Weight: 0.73kg - Article Number: AX1065 - Manufacturer Code: 9PA250FK05 - Manufacturer: FSP Technology Ltd.
