Open frame power supply TPS-GSH750S-24V

AC/DCsingle-outputregulated

Product overview

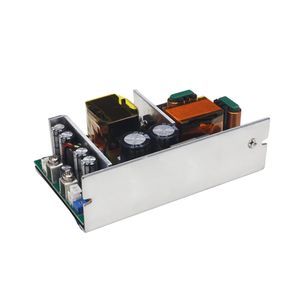

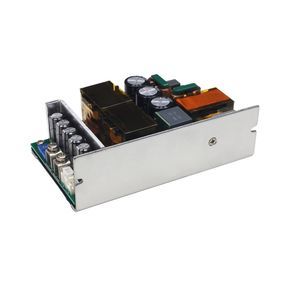

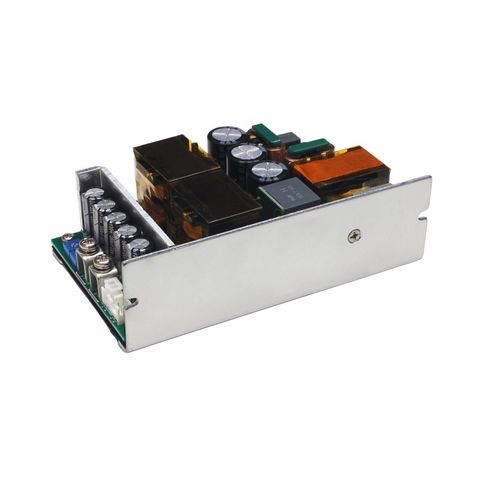

The TPS-GSH750S-24V is an open-frame single-output power supply from the TPS-GSH750S Series with an aluminum enclosure (127×76.2×40 mm). It accepts wide input ranges (85–305 VAC / 120–420 VDC) and delivers 500 W in natural convection (24 V / 20.84 A) or up to 750 W with forced-air cooling using a 25 CFM fan (24 V / 31.25 A). The unit operates from −25 °C to +70 °C, provides 3750 VAC isolation and reaches up to 95% efficiency under specified conditions. Designed for industrial and professional applications requiring CC+CV output and remote sensing.

Key features

• Model: TPS-GSH750S-24V (TPS-GSH750S Series).
• Form factor: Open-frame, single output; aluminum enclosure (127×76.2×40 mm).
• Input compatibility: 85–305 VAC or 120–420 VDC for global operation.
• Cooling & power modes: 500 W (natural convection) and 750 W (25 CFM forced air) at 24 V.
• Output: Adjustable 24 V (22.8–27 V) with CC+CV operation.
• Operating range: −25 °C to +70 °C; isolation voltage 3750 VAC.
• Efficiency & PFC: Up to 95% efficiency under specific conditions; active PFC included.
• Monitoring: LED status indicator and remote sensing terminal for precise regulation.
• Warranty: 3 years.

Protections and controls

• Input undervoltage protection.
• Output short-circuit and overcurrent protection.
• Output overvoltage protection.
• Overtemperature protection.
• Output voltage adjustment (22.8–27 V) and remote sensing for load compensation.

Specification table
Dimensions (L×W×H): 127×76.2×40 mm
Input voltage: 85–305 VAC or 120–420 VDC
Input current: 6.5 A @115 VAC; 4 A @230 VAC
Output voltage: 24 V (adjustable 22.8–27 V)
Output current: 0–26.32 A (natural cooling); 0–39.48 A (fan cooling)
Output power: 500 W (natural) / 750 W (fan, 25 CFM)
Efficiency: 91% / 93.5% (115 VAC / 230 VAC); up to 95% in specified conditions
Isolation voltage: 3750 VAC
Operating temperature: −25 °C to +70 °C
Form factor: Open-frame, aluminum enclosure
Special modes: Constant Current + Constant Voltage (CC+CV); remote sensing
Protections: UVP, SCP, OCP, OVP, OTP
Weight: 550 ± 20 g
Typical applications: Industrial automation, industrial control systems, communication equipment, LED systems, electronic instruments, medical devices
