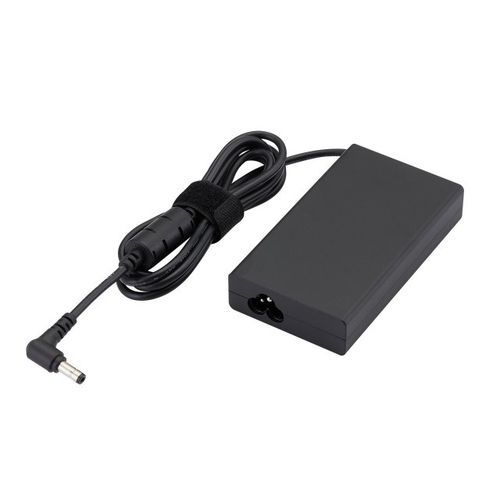

Adapter power supply FSP180-AJBU3

AC/DCregulatedsingle-output

180 W Desktop AC-DC Adapter - FSP180-AJBU3 The FSP180-AJBU3 is a compact and powerful 180 W desktop AC-DC adapter designed for industrial and IT applications. It features a universal input (90–264 VAC) and delivers a regulated 24 V / 7.5 A DC output with low ripple. Built-in protections include OVP, OCP, OTP, and SCP, while production tests (burn-in and Hi-Pot) ensure high reliability. Key Features - Output Power: 180 W (24 V / 7.5 A DC). - Input: 90–264 VAC, 47–63 Hz. - Protections: OVP, OCP, OTP, SCP. - Reliability: Burn-in & Hi-Pot tested. - Applications: Industrial PCs, displays, networking devices. Specifications - Cable Length: 1500mm - Connector: 5.5*2.5*11mm 90° - Dimensions (L*W*H)(mm): 113.5*64.5*23mm - Efficiency: DoE Level VI - Input Voltage: 90-264Vac - Output Current: 9.23A - Output Power: 180W - Output Voltage: 19.5Vdc - Socket: C6 - Weight: 0.31kg - Article Number: DA1269 - Manufacturer Code: 9NA1805103 - Manufacturer: FSP Technology Ltd.
