Adapter power supply FSP090-A1BR3

AC/DCregulatedmultiple-output

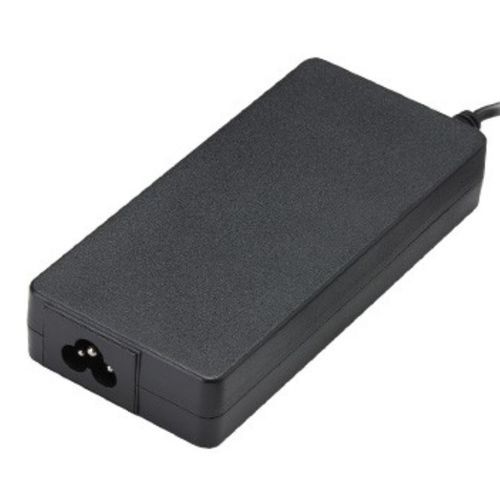

90 W Desktop AC-DC Adapter - FSP090-A1BR3The FSP090-A1BR3 is a compact 90 W desktop adapter supporting 90–264 VAC input and providing regulated DC output with low ripple. Safety protections ensure reliable performance for consumer electronics and office equipment. Burn-in and Hi-Pot tested for quality assurance.Output Power: 90 W regulated DC.Input: 90–264 VAC, 47–63 Hz.Protections: OVP, OCP, SCP.Applications: Consumer electronics, office systems.ParameterValueCable Length1500mmConnectorUSB-CDimensions (L*W*H)(mm)140*65*25mmEfficiencyDoE Level VIInput Voltage90-240VacOutput Current3A/4.5AOutput Power90WOutput Voltage5Vdc/9Vdc/15Vdc/20VdcSocketC6Weight0.33kgArticle Number: DA1167Manufacturer Code: 9NA0908602Manufacturer: FSP Technology Ltd.RoHS compliantCE, UL, WEEE, UKCA certificationsTechnical Specifications:Output Power: 90 W regulated DCInput: 90–264 VAC, 47–63 HzProtections: OVP (Over Voltage Protection), OCP (Over Current Protection), SCP (Short Circuit Protection)Applications: Consumer electronics, office systemsCable Length: 1500mmConnector: USB-CDimensions: 140*65*25mmEfficiency: DoE Level VIInput Voltage: 90-240VacOutput Current: 3A/4.5AOutput Voltage: 5Vdc/9Vdc/15Vdc/20VdcSocket: C6Weight: 0.33kg
