Open frame power supply TPS-GSH600S-24V
AC/DCsingle-outputswitching

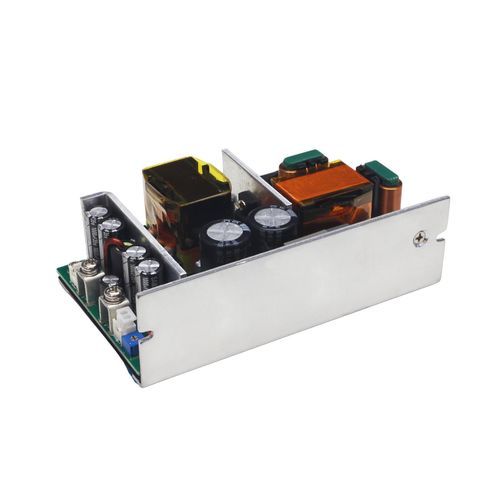

Open frame power supply - TPS-GSH600S-24V - TPS Elektronik GmbH - AC/DC / single-output / switching

Add to favorites

Compare this product

Go to the TPS Elektronik GmbH website for more information

Characteristics

Mounting / format

open frame

Type

AC/DC

Output

single-output

Technology

switching

Protection

with short-circuit protection, with overload protection, with overcurrent protection, with overheating protection

Certifications

CE, RoHS

Applications

for industrial applications, for medical applications, for LED lighting

Other characteristics

with power factor correction, high-power, high-performance, high I/O isolation, fan cooled, convection-cooled

Input voltage

Min.: 100 V

Max.: 264 V

Output voltage

Min.: 22 V

Max.: 27 V

Power

Min.: 320 W

Max.: 600 W

Description

The TPS-GSH600S-24V is a high-performance Single Output Open Frame Power Supply in the TPS-GSH600S Series, featuring an aluminum enclosure with dimensions L×W×H: 127x76.2x40mm. It supports 100-264VAC and 141-370VDC input, adapting to global power grids. As a 320W natural convection power supply, it delivers 320W under air cooling; with 24V 25CFM fan cooling, it functions as a 600W forced convection power supply, providing up to 600W output (24V/25A). Operating in a -25℃ to +70℃ range, it ensures stable performance, equipped with 3750VAC isolation for safety, Active PFC function to optimize power factor, and LED indicator for operational status monitoring. As an output voltage adjustable power supply, its range is 22-27V. With high efficiency (94%, up to 95% under specific conditions), it includes comprehensive protection: input undervoltage, output short circuit, overcurrent, output overvoltage, and overtemperature protection. It features a remote sensing terminal for precise voltage regulation and comes with a 3-year warranty. Suitable for industrial automation, control systems, communication equipment, LED applications, smart home systems, electronic instruments, and medical devices. - Series Membership: Part of TPS-GSH600S Series, ensuring consistent quality. - Design & Enclosure: Single Output Open Frame with Aluminum Enclosure. - Input Compatibility: Supports 100-264VAC and 141-370VDC for global use. - Cooling & Power: 320W natural convection, 600W forced convection (24V 25CFM). - Temperature Range: Operates in -25℃ to +70℃ environments. - Safety & Efficiency: 3750VAC isolation, high efficiency 94%. - Enhanced Functions: Active PFC, LED indicator, output voltage adjustable, remote sensing terminal. - Comprehensive Protection: Input undervoltage, output short circuit, overcurrent, output overvoltage, overtemperature protection. - Warranty: 3-year warranty. - Versatile Applications: Suitable for industrial automation, communication equipment, medical devices, etc. Specifications - Dimensions (L*W*H)(mm): 127*76.2*40mm - Efficiency: 92%/94%(115Vac/230Vac) - Input Current: 6A/115Vac, 3A/230Vac - Input Voltage: 100-240Vac - Output Current: 0-13.34A (Natural cooling), 0-11.85A (Fan cooling) - Output Power: 320W/600W (Natural/Fan cooling) - Output Voltage: 24V - Weight: 480±20g
