Open frame power supply TPS-GSH225S-36V
AC/DCregulatedsingle-output

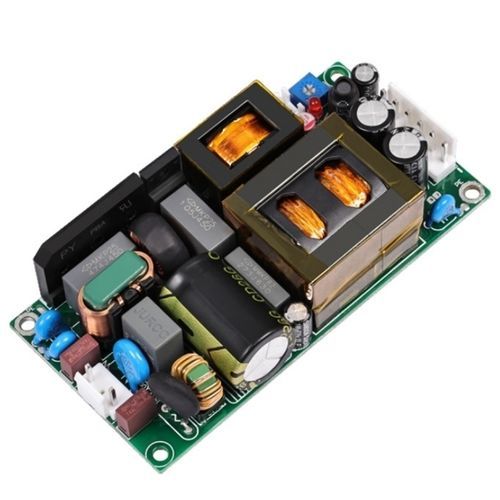

Open frame power supply - TPS-GSH225S-36V - TPS Elektronik GmbH - AC/DC / regulated / single-output

Add to favorites

Compare this product

Go to the TPS Elektronik GmbH website for more information

Characteristics

Mounting / format

open frame

Type

AC/DC

Output

single-output, regulated

Protection

with short-circuit protection, with overload protection, with overcurrent protection, with overheating protection

Certifications

CE, RoHS, ISO

Applications

for industrial applications, electronic equipment, for medical applications, for LED lighting

Other characteristics

compact, with power factor correction, wide input range, high-power, high-performance, computer-controlled, stand-alone

Input voltage

Max.: 264 V

Min.: 100 V

Output voltage

Max.: 39.6 V

Min.: 34.2 V

Current

Max.: 6.25 A

Min.: 3.88 A

Power

Max.: 225 W

Min.: 140 W

Description

TPS-GSH225S-36V Power Supply The TPS-GSH225S-36V is a high-performance Single Output Open Frame Power Supply in the TPS-GSH225S Series. It supports 100-264VAC and 141-370VDC input, adapting to global power grids. As a 140W natural cooling power supply, it delivers 140W under natural convection; with 13CFM fan cooling, it functions as a 225W fan-assisted cooling power supply, providing up to 225W output. Operating in a -25℃ to +70℃ range, it ensures stable performance, featuring 4000VAC isolation voltage for safety, active PFC function to optimize power factor, and LED indicator for status monitoring. The output voltage is adjustable in the range of 34.2~39.6V. With high efficiency (94%), it includes comprehensive protection: input undervoltage, output short circuit, overcurrent, overvoltage, and overtemperature protection. Compact at 4×2×1 inches, it comes with a 3-year warranty, suitable for industrial automation, control systems, communication equipment, LED lighting, electronic instruments, and medical equipment. - Series Membership: Part of TPS-GSH225S Series, ensuring consistent quality. - Open-Frame Design: Single output open frame for flexible integration. - Wide Input Compatibility: Supports 100-264VAC and 141-370VDC input. - Flexible Cooling: 140W natural cooling, 225W fan-assisted (13CFM). - Temperature Resilience: Operates in -25℃ to +70℃ environments. - Safety & Efficiency: 4000VAC isolation, 94% efficiency. - Enhanced Monitoring: Active PFC and LED indicator. - Adjustable Output: Output voltage adjustable 34.2~39.6V. - Comprehensive Protection: Input undervoltage, output short circuit, overcurrent, overvoltage, overtemperature protection. - Compact & Warranted: 4×2×1 inches, 3-year warranty. - Versatile Applications: Suitable for industrial automation, communication equipment, medical devices, etc. Specifications: - Dimensions (L*W*H)(mm): 101.6*50.8*25.4mm - Efficiency: 94% - Input Current: 2.5A/115Vac, 1.2A/230Vac - Input Voltage: 100-264Vac, 141-370Vdc - Output Current: 3.88A (Natural cooling), 6.25A (Fan cooling) - Output Power: 140W/225W (Natural/Fan cooling) - Output Voltage: 36V - Weight: 165±10g - Article Number: OF1283 - Manufacturer Code: OF0010016 - Manufacturer: TPS
