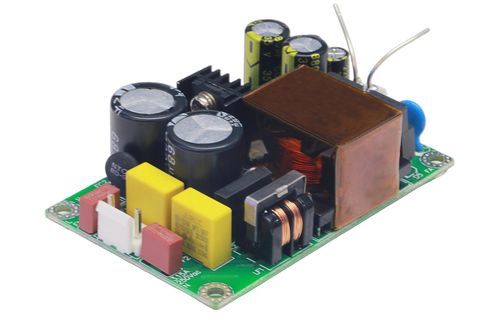

TPS-MPT36S-12V Single output open frame power supply
The TPS-MPT36S-12V is a single-output open-frame power supply from the TPS-MPT36S High Voltage Series. It is engineered for industrial equipment requiring a stable 12V source with wide input compatibility and compact footprint. The unit provides a rated 12V output at 3A (36W) and supports broad input ranges for versatile grid deployment.

Key Features

• Wide input range: 100–500VAC / 141–707VDC, compatible with common grids (110V/220V/380V).
• Output: 12V single output, rated current 3A (176–500VAC noted), operating range 0.1–3A under natural cooling.
• Protections: short-circuit, overcurrent and overpower protection; hiccup-mode overload (120%–180% rated power) with automatic recovery.
• Isolation: 3000VAC input-to-output withstand voltage.
• Output quality: regulated low ripple, max 50mVp-p.
• Efficiency: typical 86.5%.
• Compact size: 76×50×26.5 mm, approx. 95 g for space-constrained installations.
• Compliance: conforms to GB 4943.1-2011 and EN55032 Class A.

Specifications

• Model: TPS-MPT36S-12V
• Series: TPS-MPT36S High Voltage Series
• Input voltage: 100–500VAC / 141–707VDC
• Input current: <0.8 A (no-load/typical)
• Output voltage: 12 V
• Output current: 3 A (range 0.1–3 A under natural cooling)
• Output power: 36 W
• Output ripple: max 50 mVp-p
• Isolation withstand voltage: 3000 VAC (input-output)
• Efficiency (typ.): 86.5%
• Protections: short-circuit, overcurrent, overpower; hiccup-mode overload 120%–180% with auto recovery
• Dimensions (L×W×H): 76×50×26.5 mm
• Weight: approx. 95 g
• Operating temperature: -30℃ to 60℃ (see derating)
• Operating humidity: 20%–90% RH (non-condensing)
