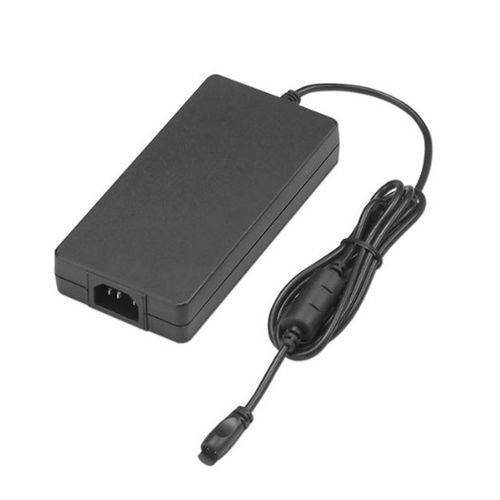

Adapter power supply FSP180-AAAN3

AC/DCsingle-outputwith overheating protection

180 W Desktop AC-DC Adapter - FSP180-AAAN3 The FSP180-AAAN3 is a robust 180 W desktop adapter with universal input (90–264 VAC) and stable 24 V DC output at 7.5 A. With DOE Level VI efficiency and global safety approvals, it’s ideal for IPCs, servers, and high-performance electronics. Built-in protections and compact design ensure reliability. Key Features - Output Power: 180 W (24 V / 7.5 A DC). - Input: 90–264 VAC. - Protections: OVP, OCP, OTP, SCP. - Compliance: DOE Level VI, CE, UL, TUV, RoHS, WEEE. - Applications: IPC, servers, industrial electronics. Specifications - Cable Length: 1800mm - Connector: DIN Power 4Pol - Dimensions (L*W*H)(mm): 151*75*25mm - Efficiency: DoE Level VI - Input Voltage: 90-264Vac - Output Current: 7.5A - Output Power: 180W - Output Voltage: 24Vdc - Socket: C14 - Weight: 0.47kg Legislation and Compliance - RoHS - CE - UL - WEEE - UKCA Technical characteristics / specifications: - Model: FSP180-AAAN3 - Output Power: 180 W (24 V / 7.5 A DC) - Input Voltage: 90–264 VAC - Protections: OVP (Over Voltage Protection), OCP (Over Current Protection), OTP (Over Temperature Protection), SCP (Short Circuit Protection) - Compliance: DOE Level VI, CE, UL, TUV, RoHS, WEEE - Applications: IPC, servers, industrial electronics - Cable Length: 1800mm - Connector: DIN Power 4Pol - Dimensions: 151*75*25mm - Efficiency: DoE Level VI - Socket: C14 - Weight: 0.47kg
