Open frame power supply TPS-GSH225S-48V
AC/DCsingle-outputwith short-circuit protection

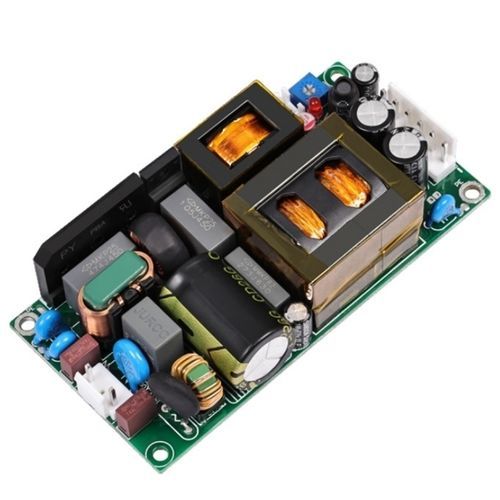

Open frame power supply - TPS-GSH225S-48V - TPS Elektronik GmbH - AC/DC / single-output / with short-circuit protection
Open frame power supply - TPS-GSH225S-48V - TPS Elektronik GmbH - AC/DC / single-output / with short-circuit protection
Add to favorites
Compare this product
Go to the TPS Elektronik GmbH website for more information

Characteristics

Mounting / format
open frame
Type
AC/DC
Output
single-output
Protection
with short-circuit protection, with overload protection, with overcurrent protection, with overheating protection
Certifications
CE, RoHS
Applications
for industrial applications, for LED lighting
Other characteristics
compact, with power factor correction, wide input range, high-performance
Input voltage

Max.: 264 V

Min.: 100 V

Output voltage

Max.: 54 V

Min.: 45.6 V

Current

Max.: 4.7 A

Min.: 2.91 A

Power

Max.: 225 W

Min.: 140 W

Description

Product Details: The TPS-GSH225S-48V is a high-performance Single Output Open Frame Power Supply from the TPS-GSH225S Series. It supports 100-264VAC and 141-370VDC input, making it compatible with global power grids. This power supply delivers 140W under natural convection and up to 225W with 13CFM fan cooling. It operates in a wide temperature range from -25℃ to +70℃, ensuring stable performance. Safety features include 4000VAC isolation voltage, active PFC function for optimized power factor, and an LED indicator for status monitoring. The output voltage is adjustable between 45.6V and 54V, with a high efficiency of 94%. Comprehensive protection includes input undervoltage, output short circuit, overcurrent, overvoltage, and overtemperature protection. The compact size (4×2×1 inches) and a 3-year warranty make it suitable for industrial automation, control systems, communication equipment, LED lighting, electronic instruments, and medical equipment. - Series Membership: Part of TPS-GSH225S Series, ensuring consistent quality. - Open-Frame Design: Single Output Open Frame for flexible integration. - Wide Input Compatibility: 100-264VAC and 141-370VDC input supported. - Flexible Cooling: 140W natural cooling, 225W with 13CFM fan. - Temperature Resilience: Operates from -25℃ to +70℃. - Safety & Efficiency: 4000VAC isolation, 94% efficiency. - Enhanced Monitoring: Active PFC and LED indicator. - Adjustable Output: 45.6~54V output voltage range. - Comprehensive Protection: Input undervoltage, output short circuit, overcurrent, overvoltage, overtemperature protection. - Compact & Warranted: 4×2×1 inches, 3-year warranty. - Versatile Applications: Suitable for industrial automation, communication, medical devices, etc. Parameter | Value --- | --- Dimensions (L*W*H)(mm) | 101.6*50.8*25.4mm Efficiency | 94.6% Input Current | 2.5A/115Vac, 1.2A/230Vac Input Voltage | 100-264Vac, 141-370Vdc Output Current | 2.91A (Natural cooling), 4.7A (Fan cooling) Output Power | 140W/225W (Natural/Fan cooling) Output Voltage | 48V Weight | 165±10g - Article Number: OF1284 - Manufacturer Code: OF0010017 - Manufacturer: TPS
